Repair Procedures: Removal

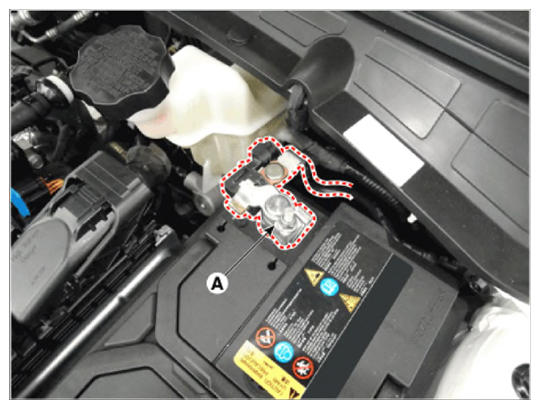

- Turn the ignition switch OFF and then disconnect the battery negative (-) terminal (A).
Tightening Torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb-ft)
- Remove the battery.
(Refer to Charging System - "BATTERY ")

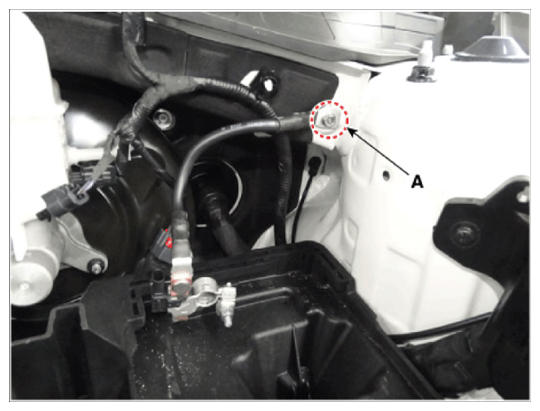

- Remove the battery sensor (-) terminal assembly after loosening the mounting bolt (A).
Tightening Torque:
26.5 - 34.3 N.m (2.7 - 3.5 kgf.m, 19.5 - 25.3 lb-ft)
