[Engine Coolant Temperature Sensor (ECTS) #2]
- Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

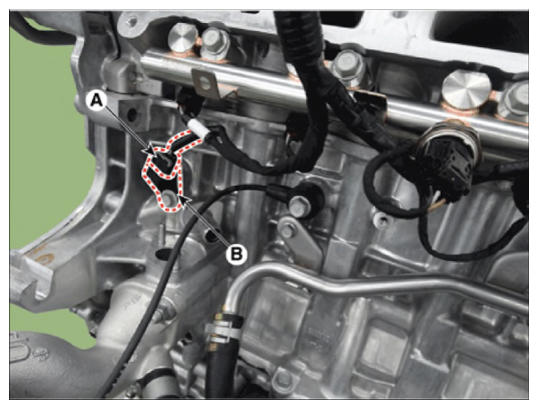

- Disconnect the ECTS connector (A).
- Remove the ECTS (B) after loosening the mounting bolt.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
