Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".

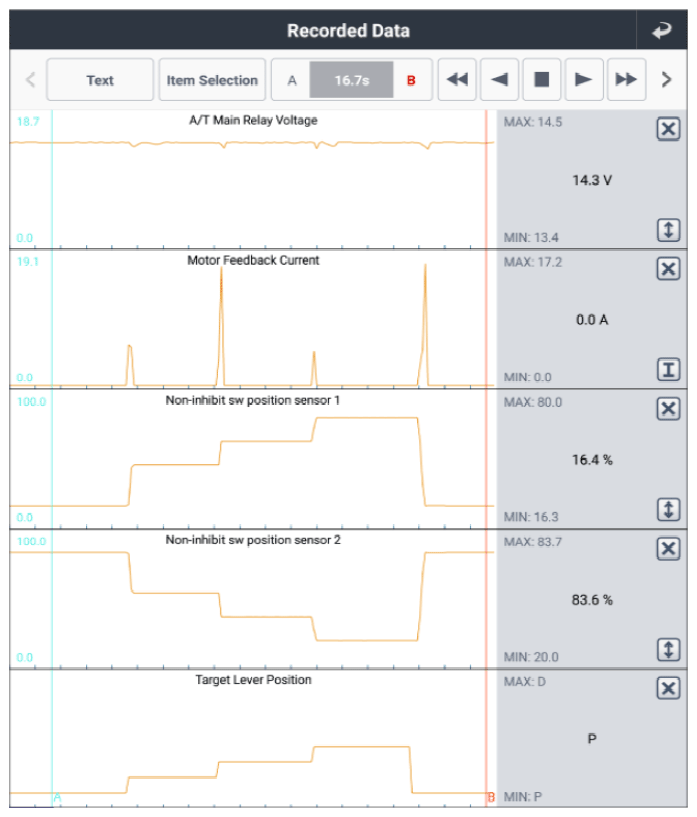

  3. Select "Current Data" mode and monitor "Non-inhibit sw position sensor 1" parameter.
  4. Change a shift lever from P-range to D-range.
    G14634799Courtesy of HYUNDAI MOTOR AMERICA
