Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the Shift by wire Control Unit (SCU).

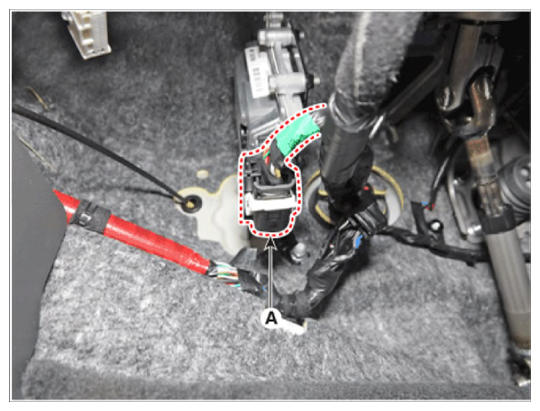

  1. Disconnect the SCU connector (A).
    G14633237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

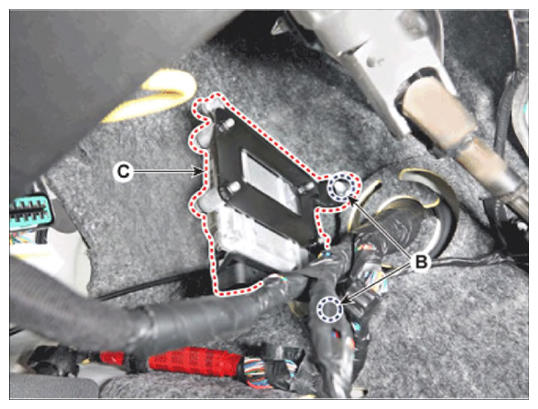

  2. Loosen the nuts (B) and then removing the SCU (C).
G14633238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
