Repair Procedures: Removal

Information

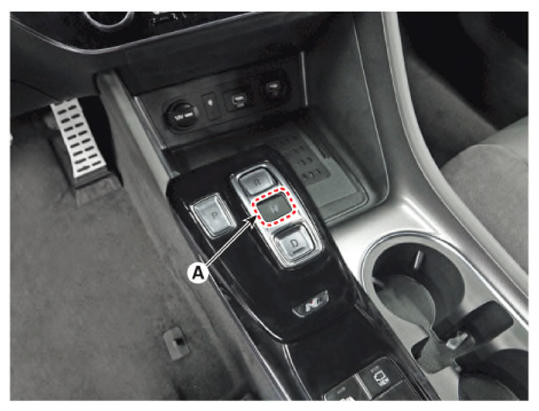

• Before removal, press the brake pedal while the ignition switch is ON and press the N button (A) for a long time to position it in the N position, then remove the battery (-) terminal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
2. Remove the air cleaner assembly and air duct.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

3. Remove the battery and battery tray.

   (Refer to Engine Electrical System - "BATTERY ")

4. Remove the ECM.

   (Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")

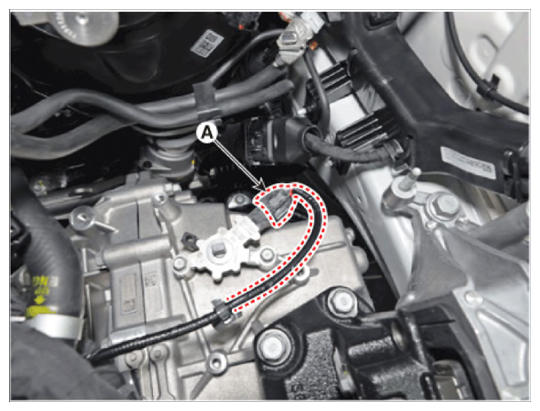

5. Disconnect the electronic shift actuator connector (A) and wiring clip (B).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

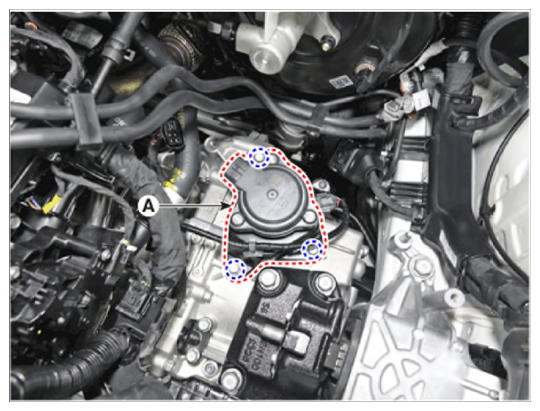

6. Loosen the bolts and then removing the electronic shift actuator (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

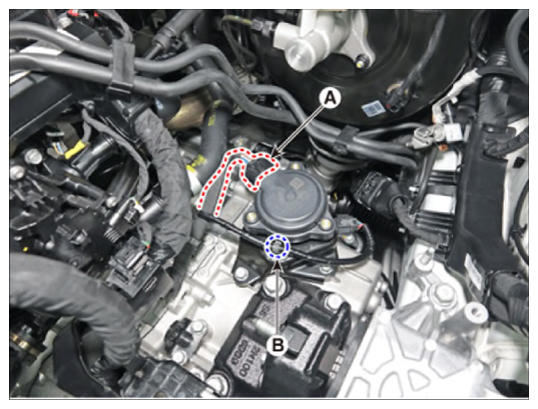

7. Disconnect the position sensor connector (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

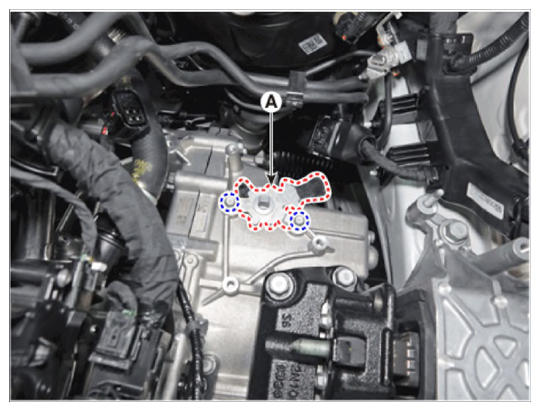

8. Loosen the bolts and then removing the position sensor (A).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
