Repair Procedures: Installation

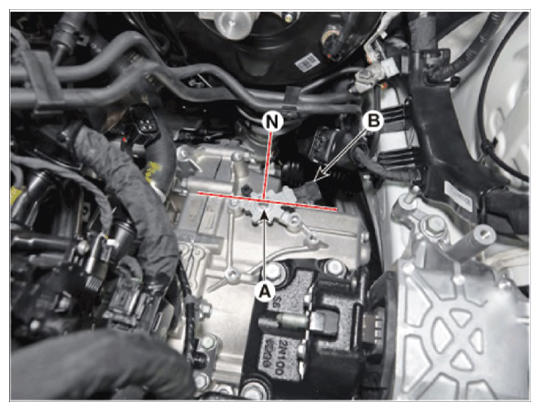

Check that the shaft (A) is in the "N" position.
Install the position sensor (B).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

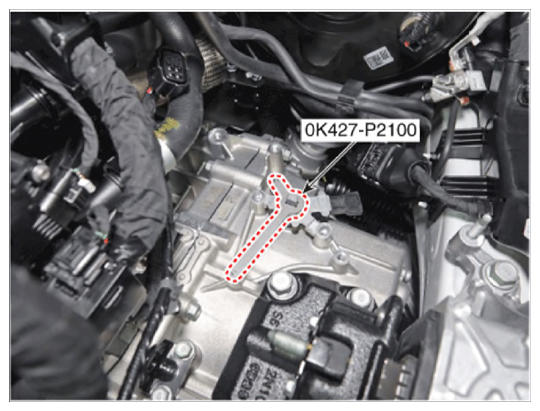

Install the position sensor "N" fixing SST (No.:0K427-P2100).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

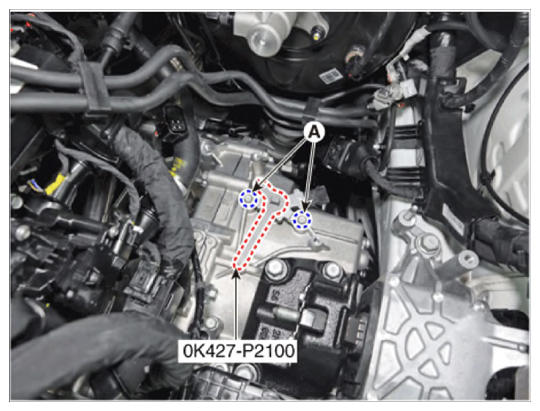

Install the bolts (A) in the position sensor and then remove the position sensor "N" fixing SST (No.:0K427-P2100)
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 28.9 - 33.9 lb-ft)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

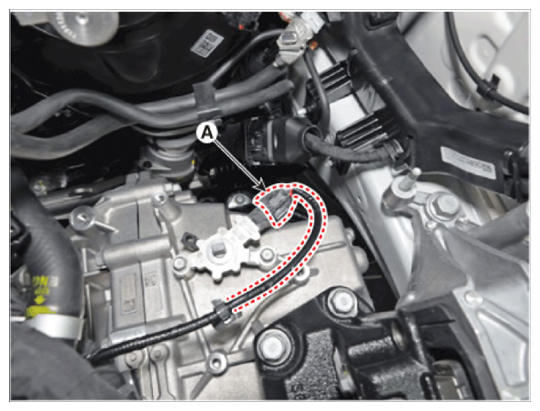

Connect the position sensor connector (A).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

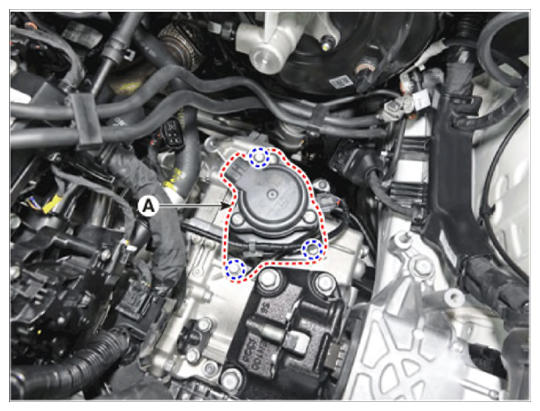

Install the electronic shift actuator (A).
Tightening torque:

20.6 - 26.5 N.m (2.1 - 2.7 kgf.m, 15.2 - 19.5 lb-ft)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

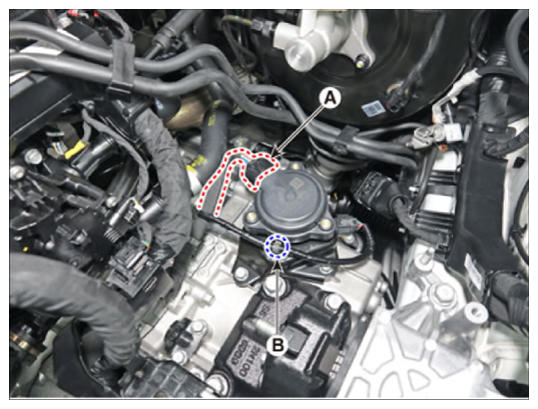

Connect the electronic shift actuator connector (A) and wiring clip (B).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the ECM.
(Refer to Engine Control System - "ECM ")
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Connect the negative (-) battery cable.
Check that operating surely at each range of the position sensor corresponding to each position of electric shift button.
