Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the electric shift button.

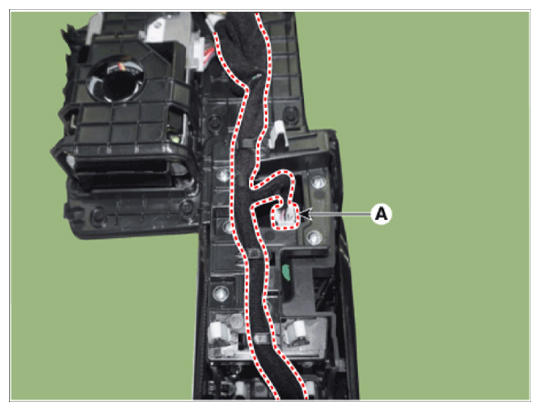

    1. Disconnect the connector (A) and then separate the wire.
      G14633230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

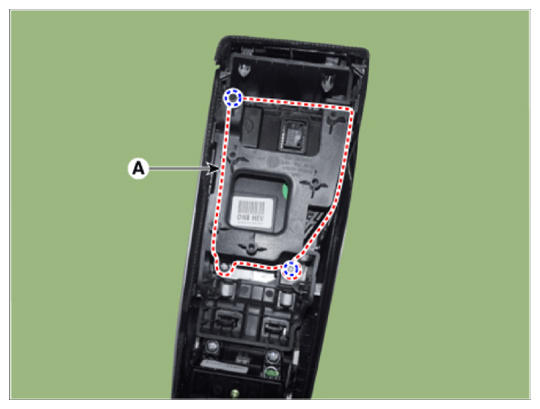

    2. Loosen the screw and then removing the shift button assembly (A).
      G14633231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

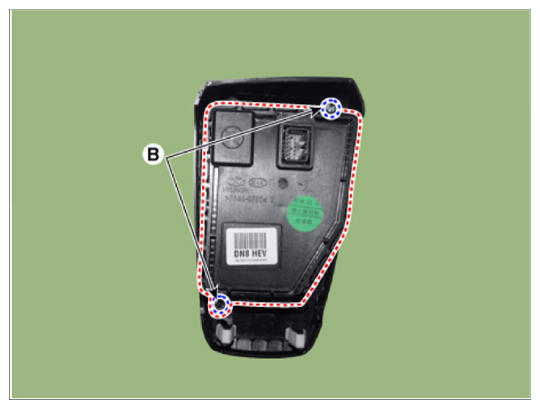

    3. Loosen the screw (B) and then removing the upper cover (A).
      G14633232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      G14633233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

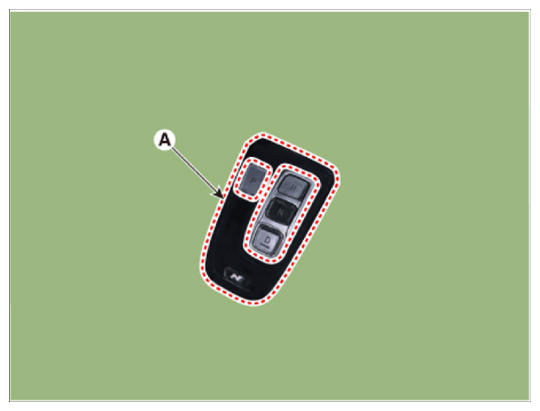

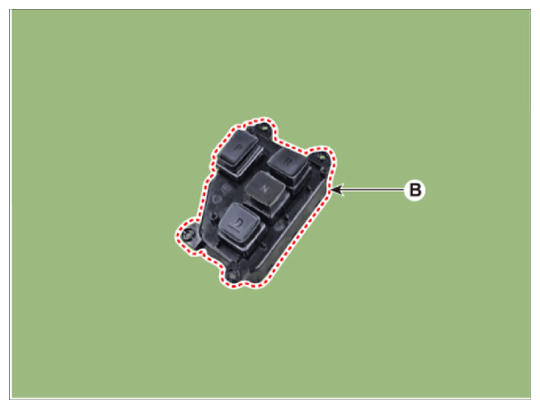

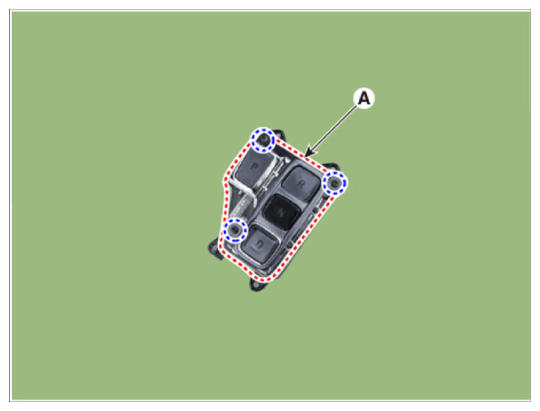

    4. Loosen the screw and then removing the upper cover (A) from shift button (B).
      G14633234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      G14633235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
