Repair Procedures: Installation

  1. To install, reverse the removal procedures.
    NOTE:

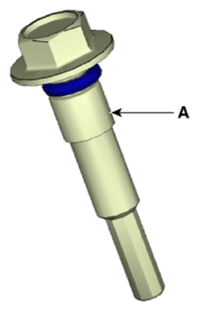

    • When reinstalling the TCM, Tighten the TCM connector mounting bolt (A) with new one.
    G14633209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

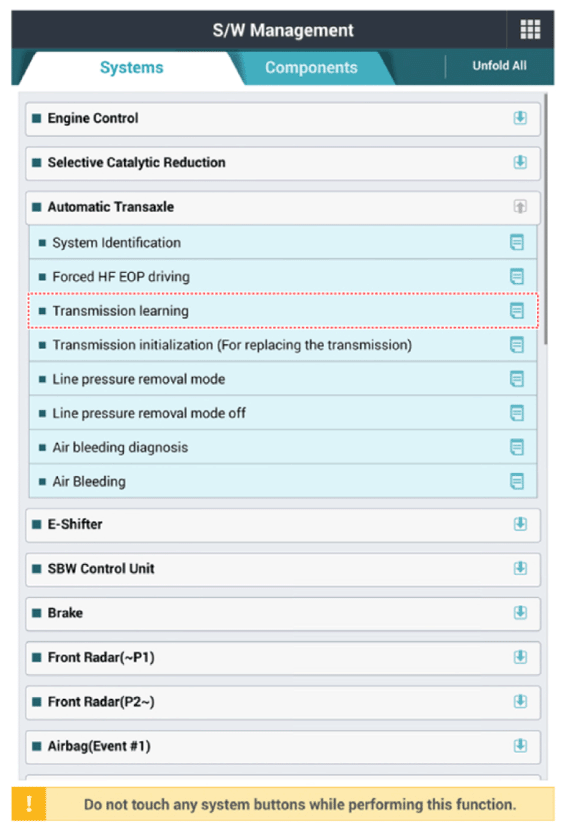

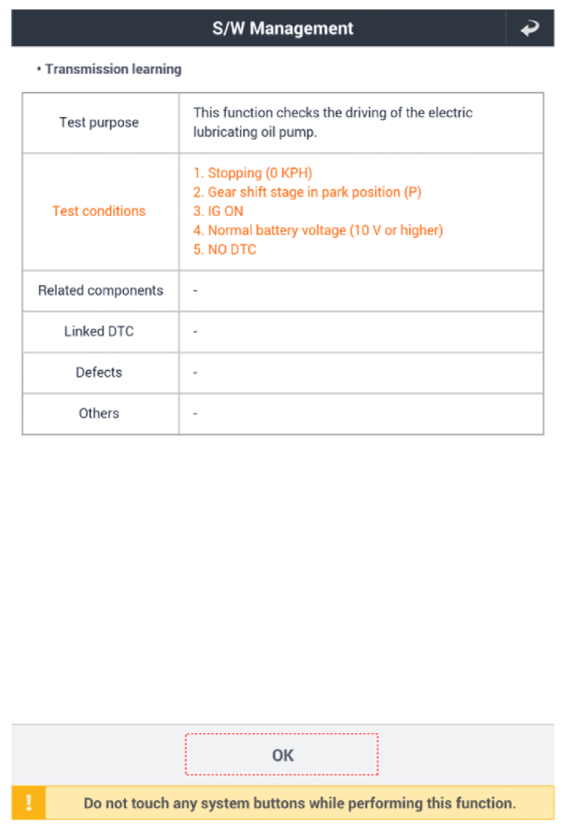

  2. Perform the clutch touch point learning procedure using the diagnostic tool after replacing TCM
G14633210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
G14633211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
