Components & Components Location: Components

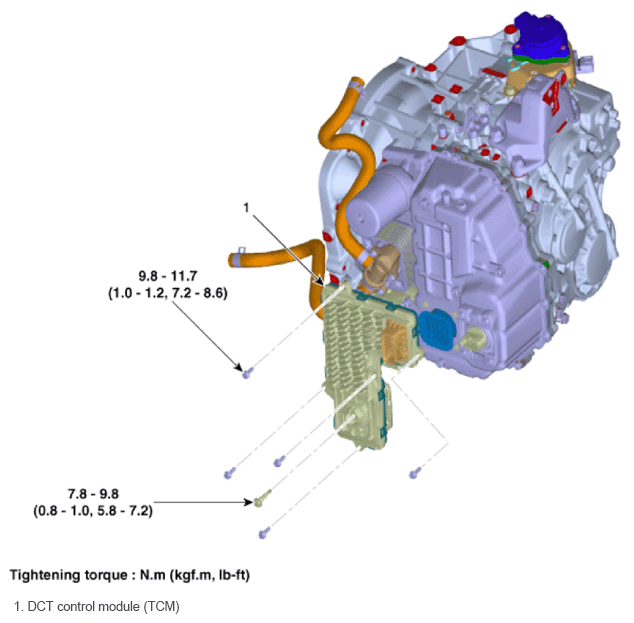

Fig 1: DCT Control Module Components Location With Torque Specification

G14633202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
