Repair Procedures: Inspection

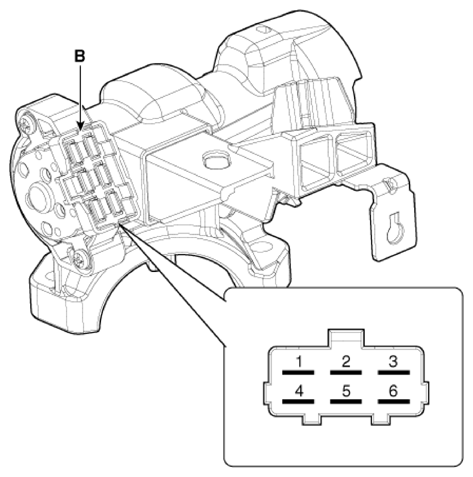

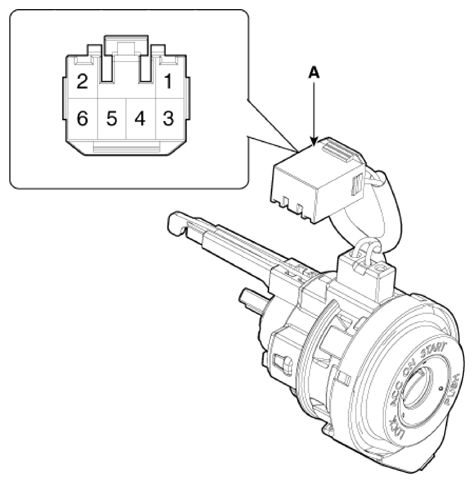

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G14628047Courtesy of HYUNDAI MOTOR AMERICA
    G14628048Courtesy of HYUNDAI MOTOR AMERICA

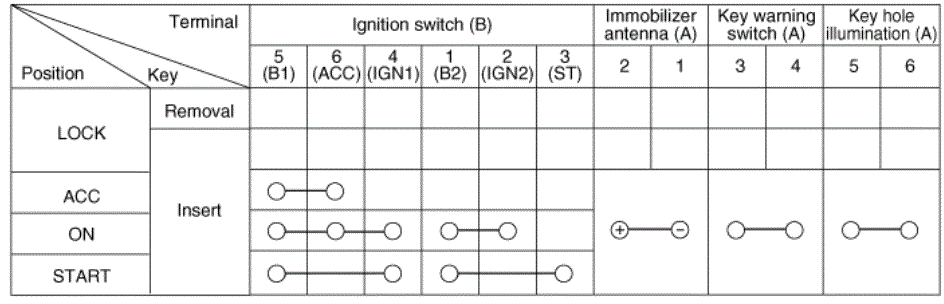

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G14628049Courtesy of HYUNDAI MOTOR AMERICA
