Home >> Hyundai >> 2021 >> Sonata N Line >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) (Except HEV) >> IMS (Integrated Memory System) Module >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

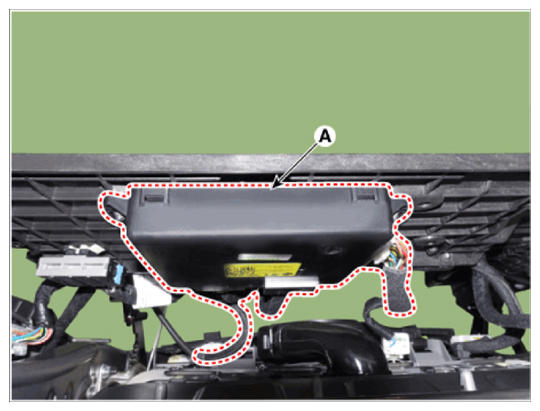

  3. Remove the IMS module (A) after disconnecting the connector and loosening the screws (3EA).
    G14627623Courtesy of HYUNDAI MOTOR AMERICA
