Engine Coolant Temperature Sensor (ECTS) #1 [ITM Side]

  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

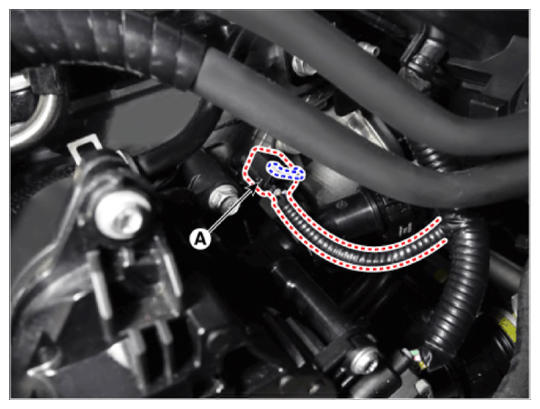

  2. Disconnect the engine coolant temperature sensor (ECTS) connector (A).
    G14534195Courtesy of HYUNDAI MOTOR AMERICA

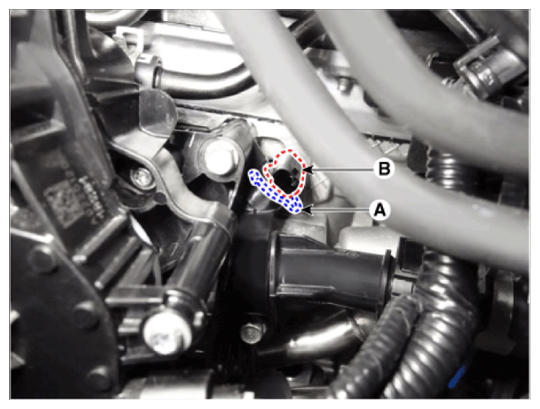

  3. Release the fixing clip (A) and then removing the ECTS (B).
    G14534196Courtesy of HYUNDAI MOTOR AMERICA
