[Bank 1/Intake]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

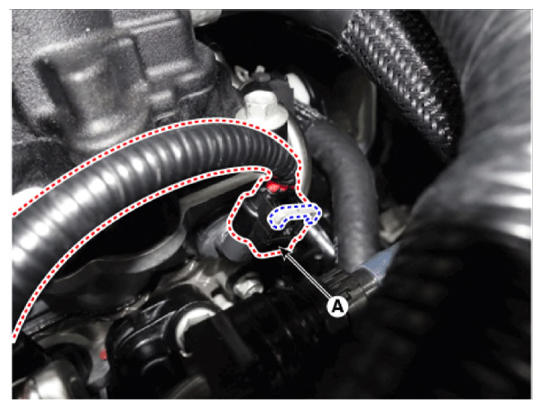

  2. Disconnect the camshaft position sensor connector (A).
    G14534215Courtesy of HYUNDAI MOTOR AMERICA

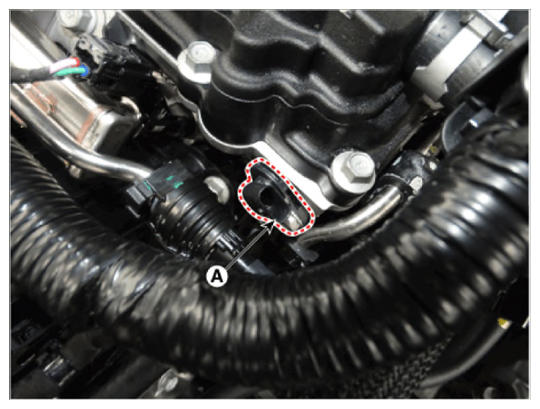

  3. Remove the sensor after loosening the mounting bolt (A).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14534216Courtesy of HYUNDAI MOTOR AMERICA
