Home >> Hyundai >> 2021 >> Santa Fe Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Camshaft Position Sensor (CMPS) >> Wavefrom Data

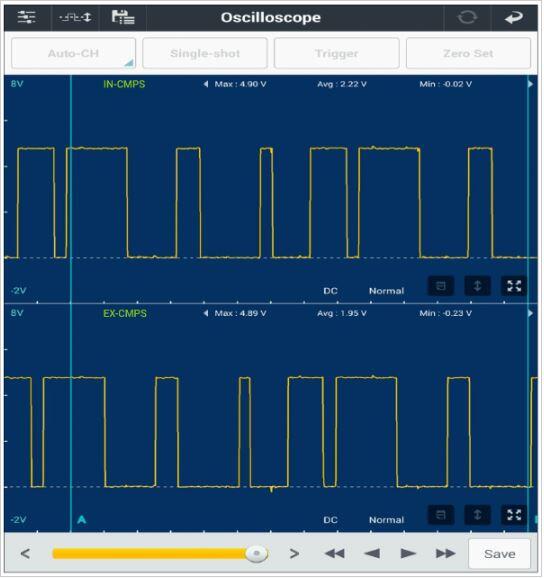

Wavefrom Data

G00619284

Courtesy of HYUNDAI MOTOR AMERICA
