Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).

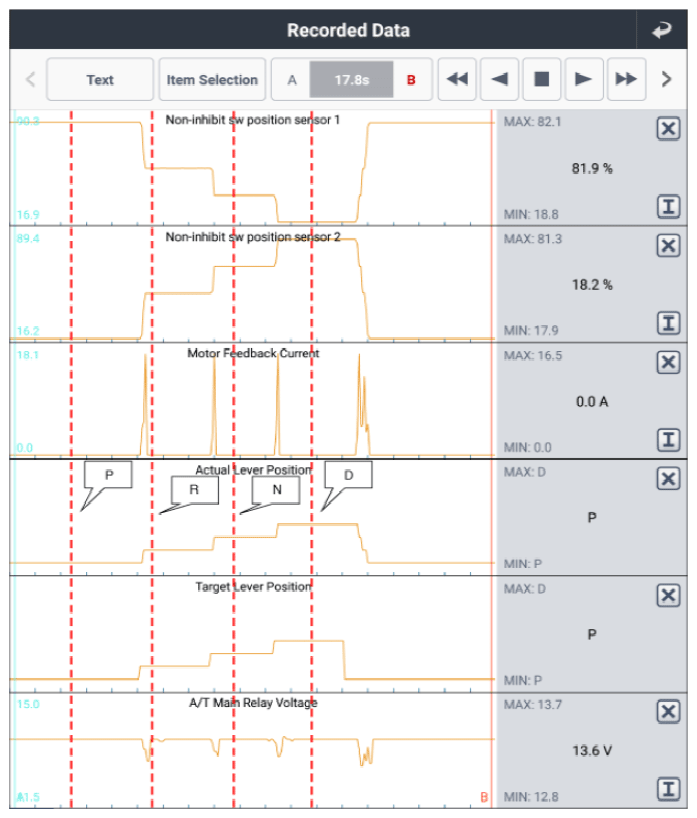

2. Ignition "ON" & engine "OFF".
3. Select "Current Data" mode and monitor "Non-inhibit sw position sensor 1" parameter.
4. Change a shift lever from P-range to D-range.

   Courtesy of HYUNDAI MOTOR AMERICA

5. Is the value changed in specification?

YES

• When alignment is not correct between SBW system. So do not replace "SBW actuator & position sensor" and check the alignment of SBW position sensor.

NO

• Go to next procedure.
