Repair Procedures: Removal

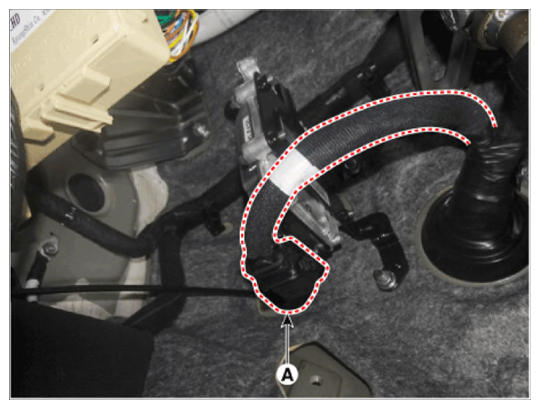

Disconnect the SBW control unit (SCU) connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

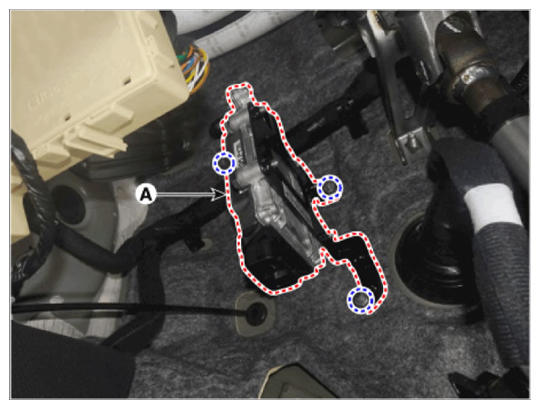

Loosen the nuts and then removing the SBW control unit (SCU) and bracket (A) at the same time.
Tightening torque: 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

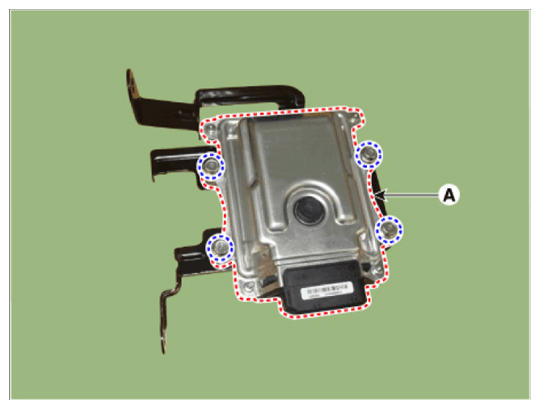

Loosen the nuts and then removing the SBW control unit (SCU) (A).

Courtesy of HYUNDAI MOTOR AMERICA
