Repair Procedures: Installation

  1. To install, reverse the removal procedures.
    NOTE:

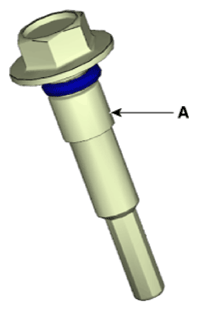

    • When reinstalling the TCM, Tighten the TCM connector mounting bolt (A) with new one.
    G14538151Courtesy of HYUNDAI MOTOR AMERICA

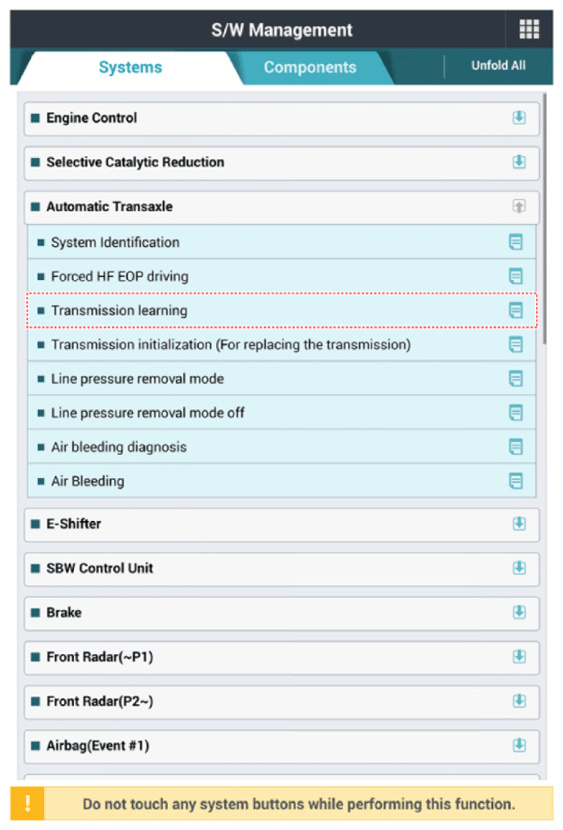

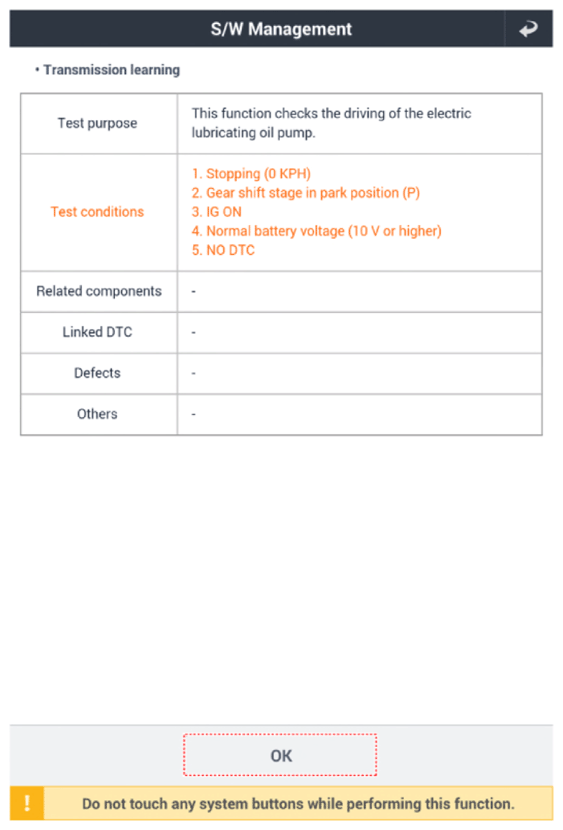

  2. Perform the clutch touch point learning procedure using the diagnostic tool after replacing TCM
    G14538152Courtesy of HYUNDAI MOTOR AMERICA
    G14538153Courtesy of HYUNDAI MOTOR AMERICA
