Components And Components Location: Components

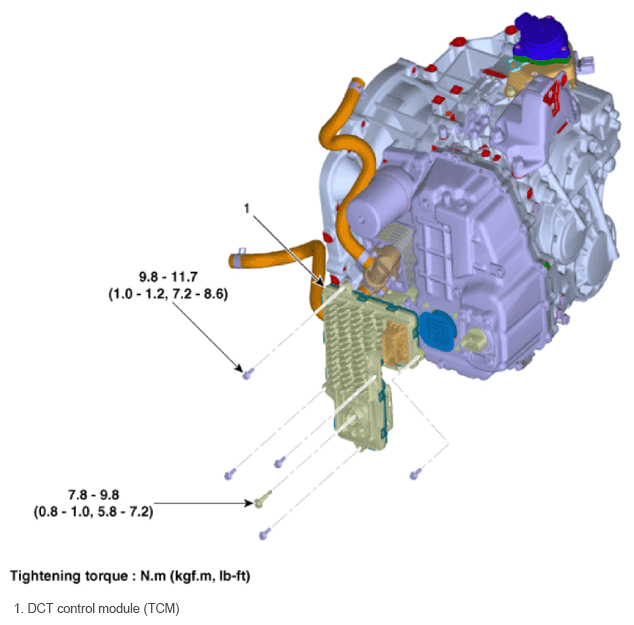

Fig 1: DCT Control Module Components Location With Torque Specification

G14538144

Courtesy of HYUNDAI MOTOR AMERICA
