Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.

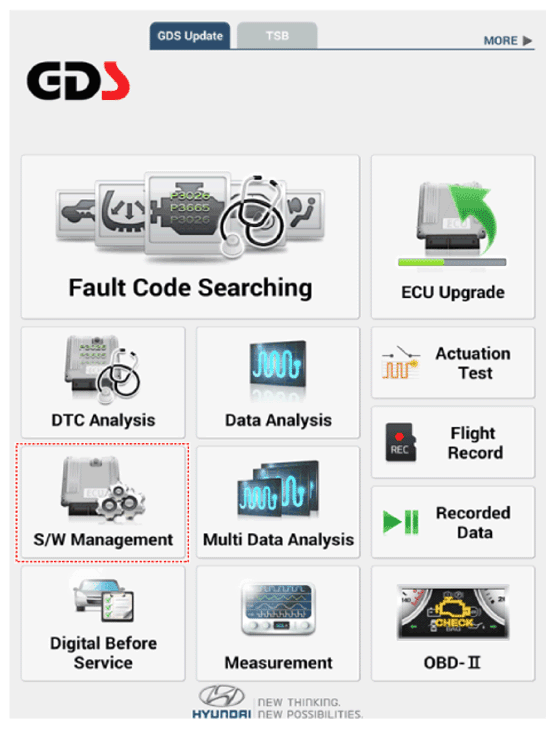

Select the 'S/W Management' and 'Car model'.
Courtesy of HYUNDAI MOTOR AMERICA

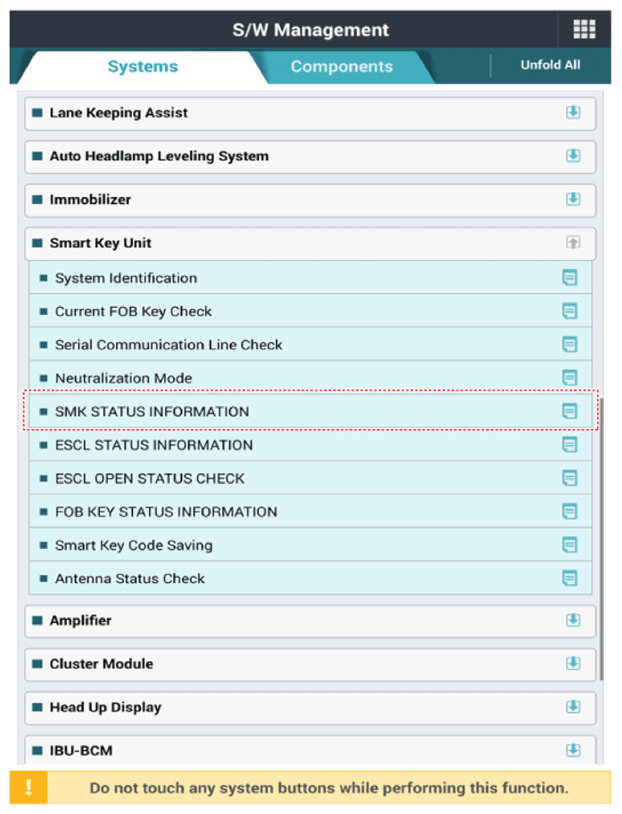

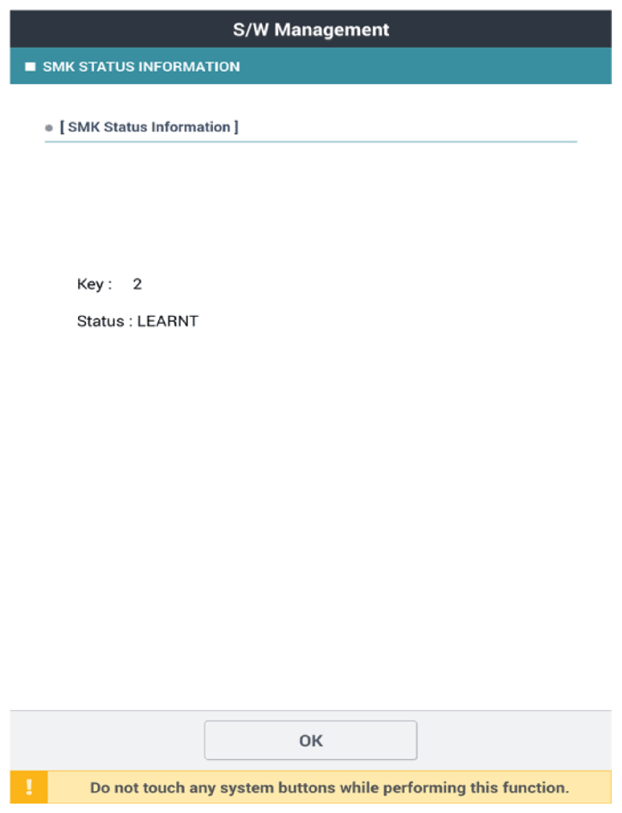

Select the 'Smart Key Unit' and 'SMK STATUS INFORMATION'.
