Neutralization Status Check

WARNING: This page is about a different car, the 2022 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.

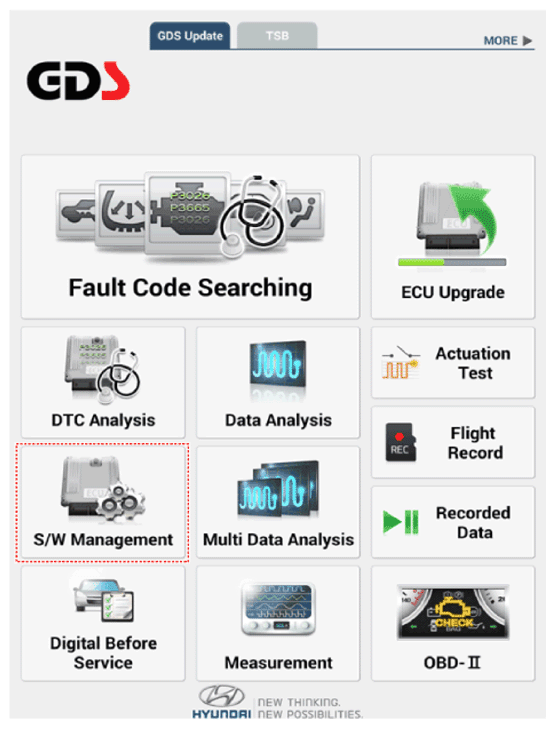

  2. Select the 'S/W Management' and 'Car model'.
    G14539738Courtesy of HYUNDAI MOTOR AMERICA

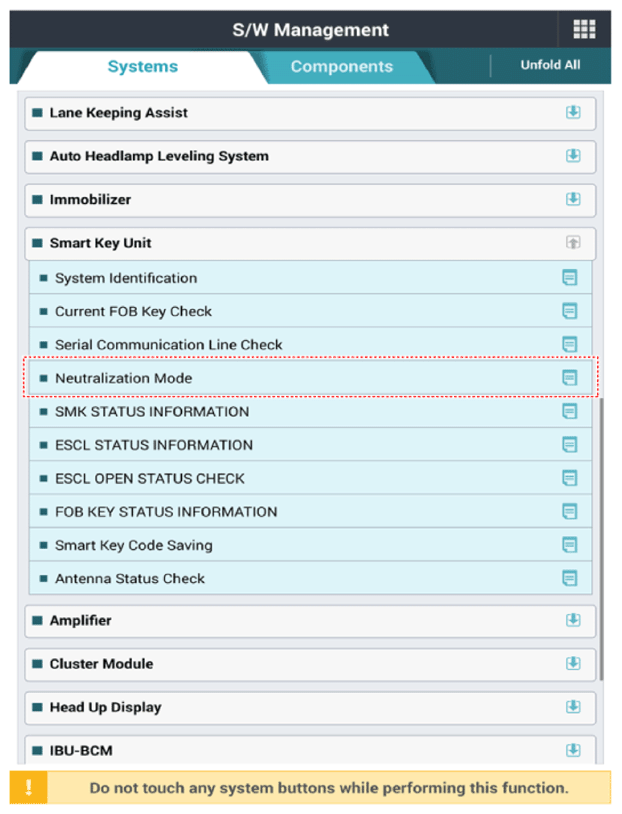

  3. Select the 'Smart Key Unit' and 'Neutralization Mode'.
G14539739Courtesy of HYUNDAI MOTOR AMERICA

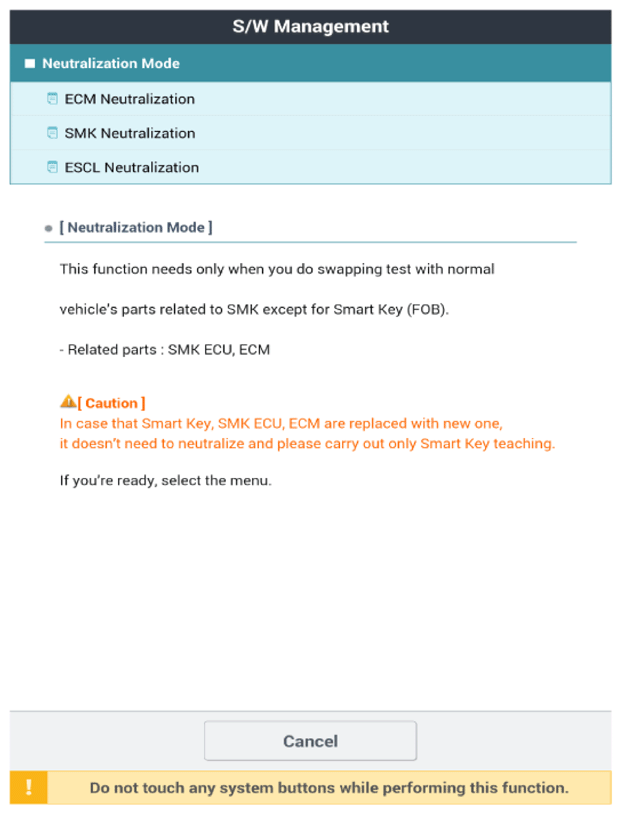

G14539740Courtesy of HYUNDAI MOTOR AMERICA
