Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

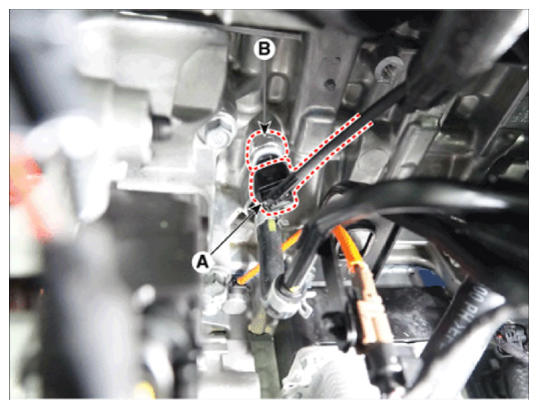

- After disconnecting the oil pressure & oil temperature sensor connector (A), remove the oil pressure & oil temperature sensor (B).
Tightening torque: 35.3 - 38.2 N.m (3.6 - 3.9 kgf.m, 26.0 - 28.2 lb-ft)
