[Bank 1/Sensor 2]

  1. Switch "OFF" the ignition and disconnect the battery negative (-) terminal.

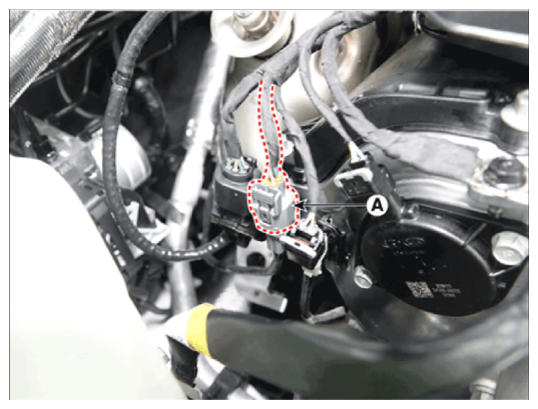

  2. Disconnector the heated oxygen sensor connector (A).
    G14537839Courtesy of HYUNDAI MOTOR AMERICA
  3. Lift the vehicle.
  4. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

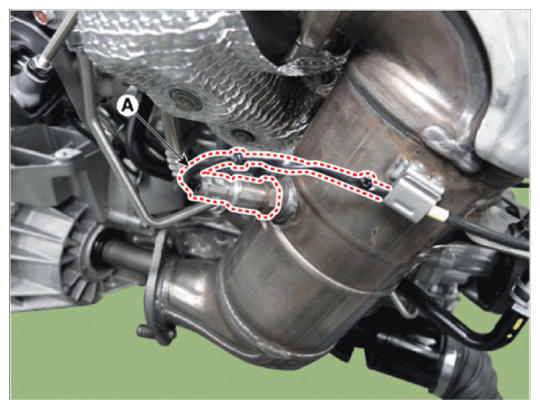

  5. Remove the heated oxygen sensor (A).

    Tightening torque:  39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb-ft)

    G14537840Courtesy of HYUNDAI MOTOR AMERICA
