Engine Coolant Temperature Sensor (ECTS) #3 - Cylinder Block Side
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

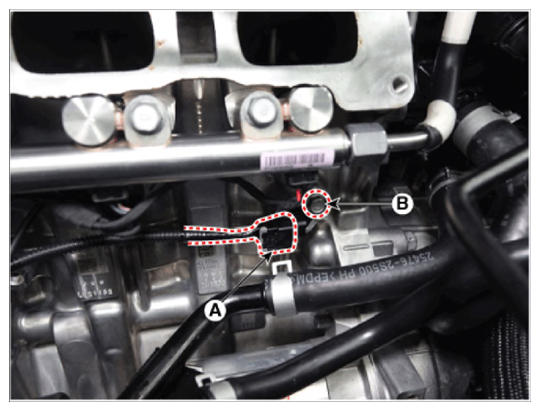

- Disconnect the engine coolant temperature sensor connector (A).
- After removing the installation bolts (B), remove the engine coolant temperature sensor.
Tightening torque: 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
