Engine Coolant Temperature Sensor (ECTS) #1 - Water Temperature Control Assembly Side
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

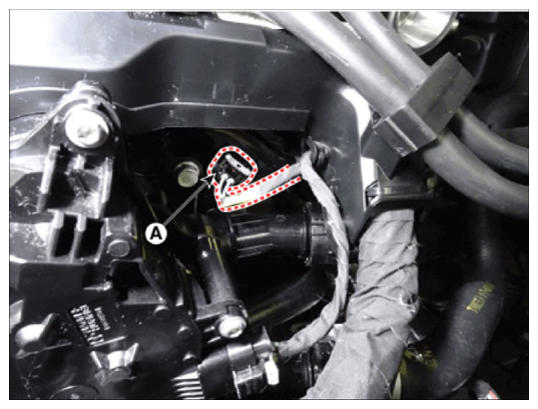

- Disconnect the engine coolant temperature sensor connector (A).

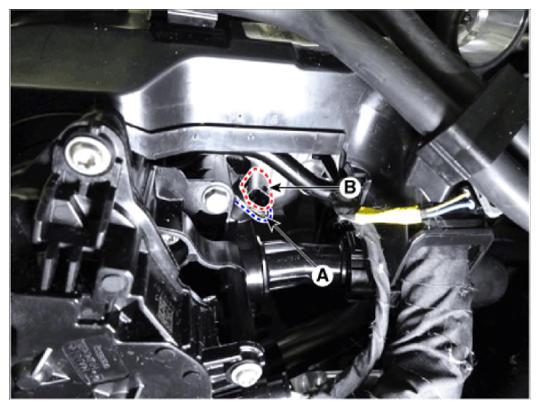

- Disconnect the fixing clip (A), and remove the engine coolant temperature sensor (B).
