Repair Procedures: Removal

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

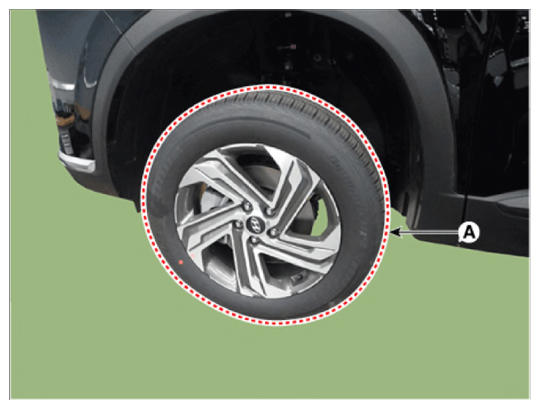

Remove the front wheel and tire (A) from the front hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire (A).
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

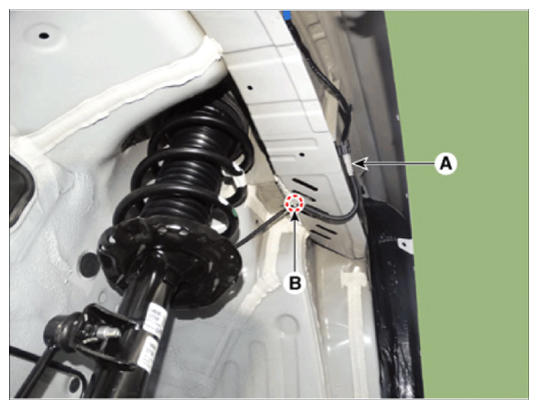

Disconnect the front wheel speed sensor connector (A) and then remove the fixing clip (B).

Courtesy of HYUNDAI MOTOR AMERICA

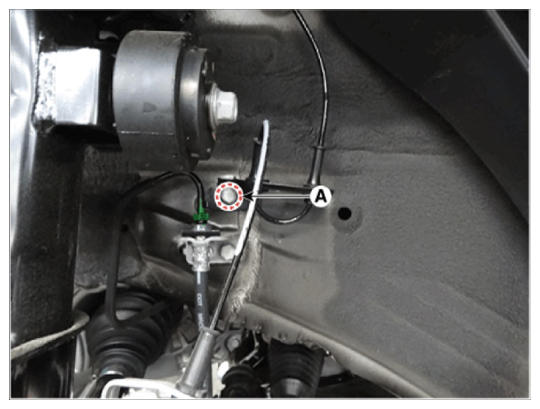

Remove the front wheel speed sensor cable bracket bolt (A).
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

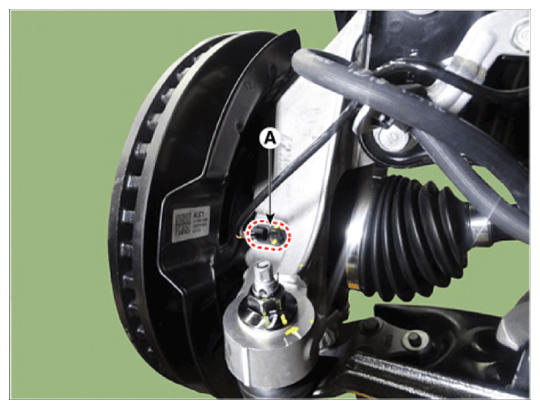

Loosen the bolt and then disconnect the front wheel speed sensor (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
