Home >> Hyundai >> 2021 >> Palisade SE, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 9) >> DTC P0125-00: Insufficient Coolant Temperature For Closed Loop Fuel Control >> Troubleshooting >> Diagnostic Flowchart

Diagnostic Flowchart

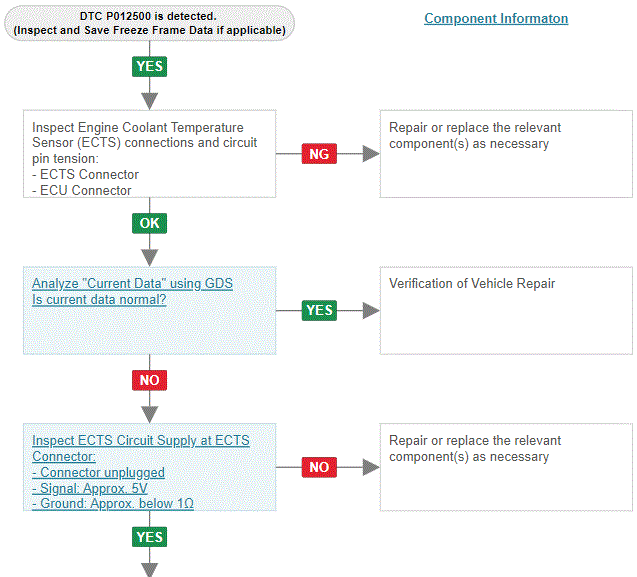

Fig 1: 1 Of 2
G14460564Courtesy of HYUNDAI MOTOR AMERICA

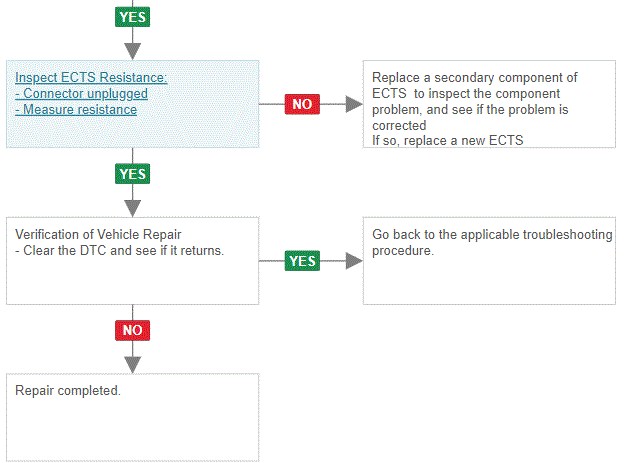

Fig 2: 2 Of 2
G00616009Courtesy of HYUNDAI MOTOR AMERICA
