IAU-IBU Learning method

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

Learning between IAU-IBU is carried out to set up the digital key system.

NOTE:

When learning IAU-IBU, the digital key information previously stored in the vehicle is deleted.
It is used after re-enrolling the digital key.

Connect the vehicle and the diagnostic tool.
NOTE:
- In order to use the diagnostic tool normally, the vehicle status is maintained at "ACC ON". (Avoid system errors)
- Be careful of battery discharge when using the diagnostic tool.

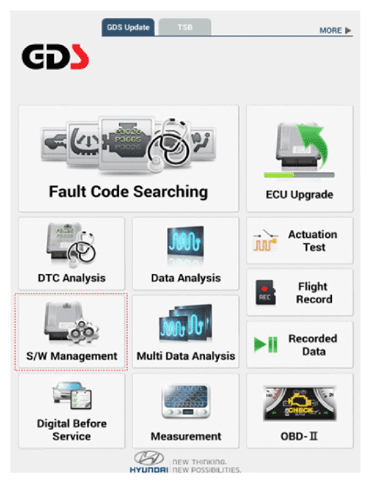

Select the "S/W Management".

Courtesy of HYUNDAI MOTOR AMERICA

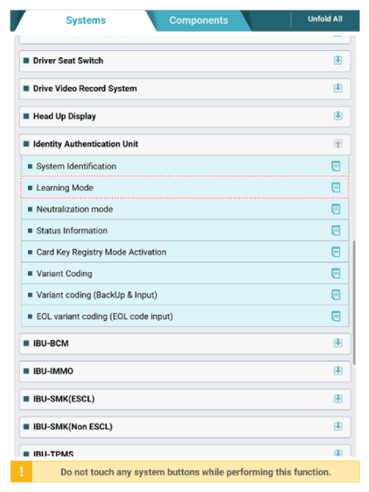

Select "Identity Authentication Unit" and "Learning Mode".
Information
- Additional procedures follow the instructions of the diagnostic tool.
Courtesy of HYUNDAI MOTOR AMERICA
