Repair Procedures: Installation
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable from battery and wait for at least three minutes before beginning work.

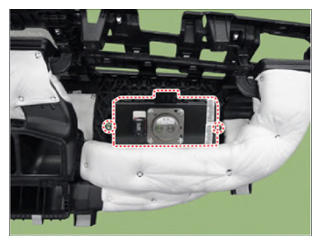

- Place a passenger airbag on the crash pad and tighten the passenger airbag mounting bolts (A).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
- Install the main crash pad.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")
- Tighten the passenger airbag mounting bolts and then connect the passenger airbag harness connector.
Tightening torque:
8.8-10.8 N.m (0.9-1.1 kgf.m, 6.5 - 8.0 lb-ft)
- install the Glove box housing
(Reper Body - "Glove Box")
- Reconnect the battery cable (-)
- After installing the passenger airbag, confirm proper system operation:
Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off.
