Engine Control System Diagnosis (5 Of 9)
>>
DTC P050A-00: Cold Start Idle Air Control System Performance
>>
Troubleshooting
>>
Diagnostic Flowchart
Diagnostic Flowchart

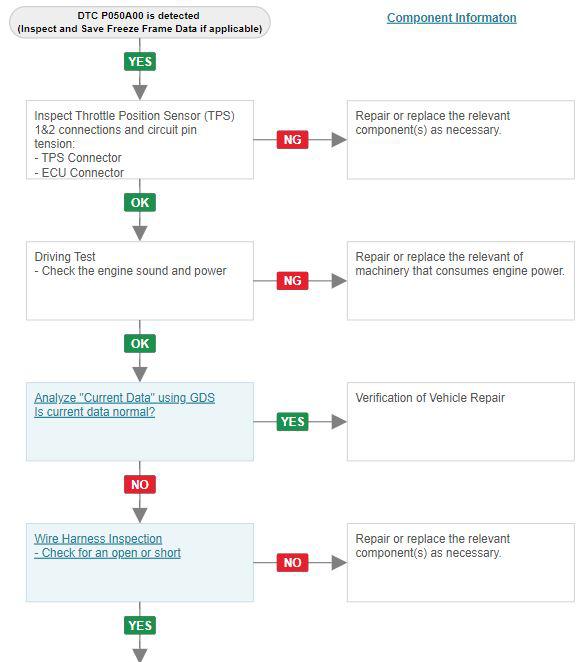

Fig 1: 1 Of 3
Courtesy of HYUNDAI MOTOR AMERICA

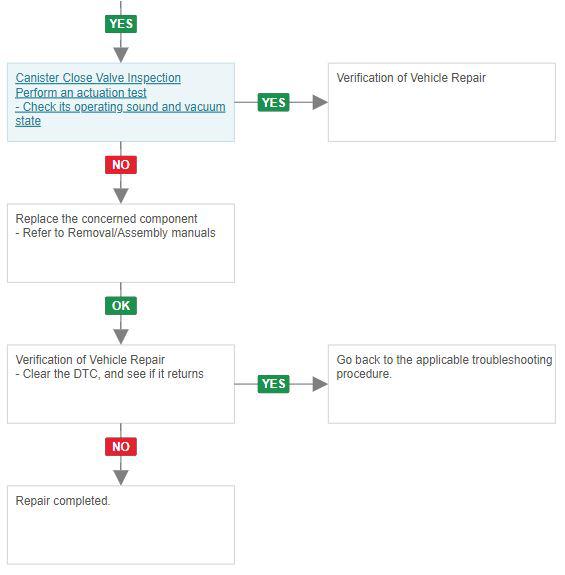

Fig 2: 2 Of 3
Courtesy of HYUNDAI MOTOR AMERICA

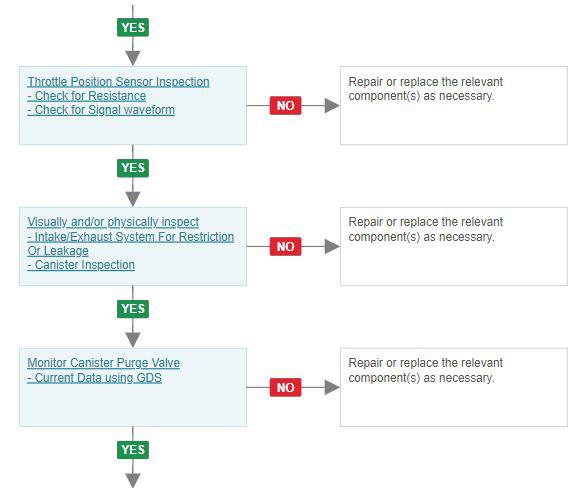

Fig 3: 3 Of 3
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
