200W, 400W

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the heater control.
  3. Disconnect the DC/DC converter connector.

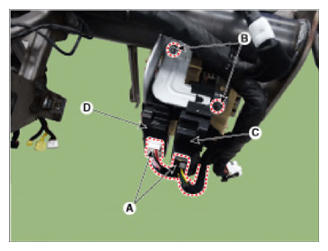

  4. Remove the DC/DC converter after loosening the mounting nuts (A).
    G14423965Courtesy of HYUNDAI MOTOR AMERICA
