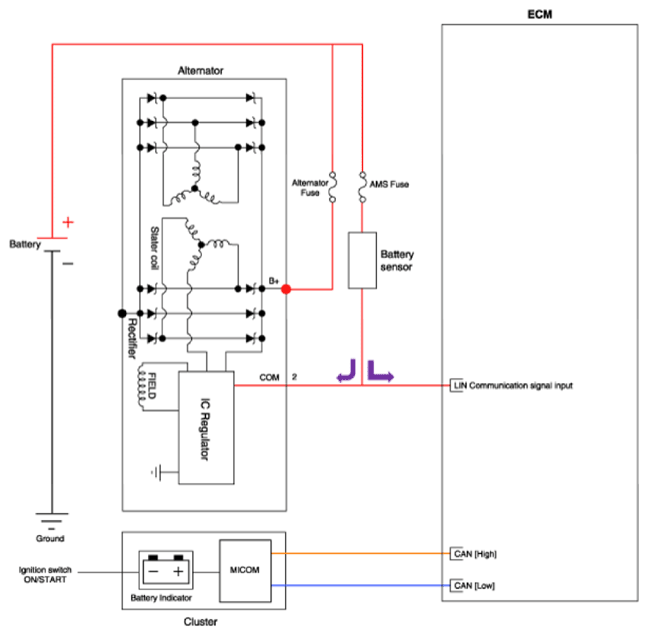

Circuit Diagram
Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Information
COM signal
- LIN communication control
B+ Terminal
- The output voltage from the generator travels to the battery via the B+ terminal.
Courtesy of HYUNDAI MOTOR AMERICA
