Driver Power Window Switch

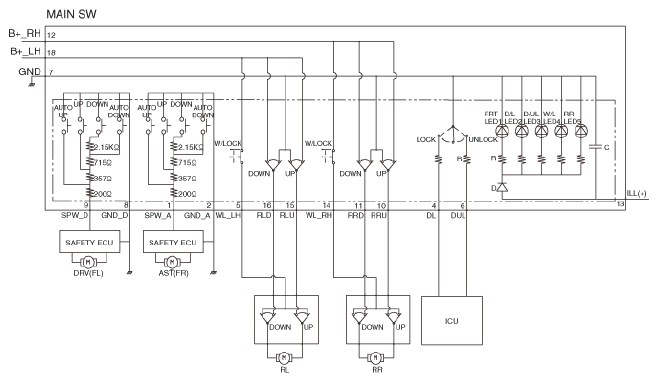

[Safety Power Window (Front)]

G12606225Courtesy of HYUNDAI MOTOR AMERICA

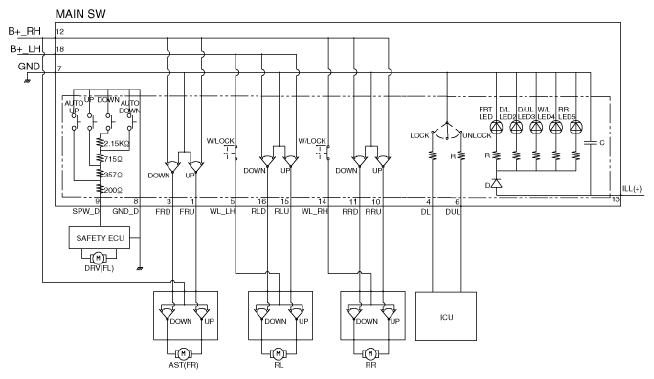

[Safety Power Window (Driver)]

G12606226Courtesy of HYUNDAI MOTOR AMERICA

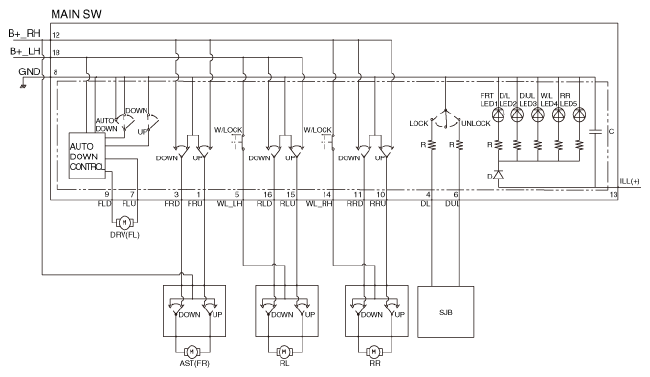

[Autodown Power Window]

G12606227Courtesy of HYUNDAI MOTOR AMERICA
