Repair Procedures: Removal

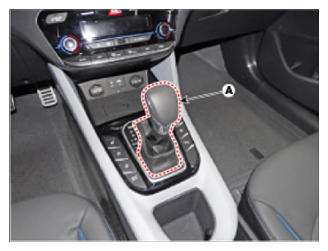

Remove the shift lever knob & boots (A) pull both of it up.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

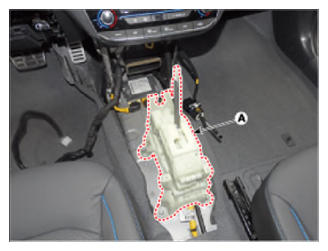

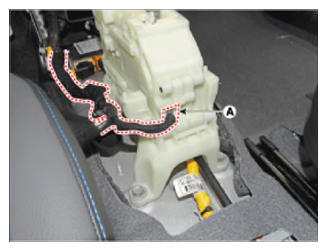

Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the shift cable.

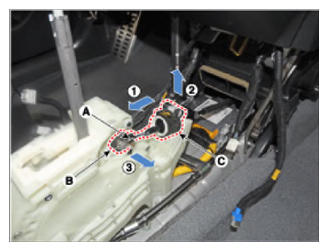

1. Disconnect the eye-end (B) after removing the snap pin (A).
2. Release the lock and then remove the cable socket (C).
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lever assembly (A) after removing the bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
