Signal Waveform & Data

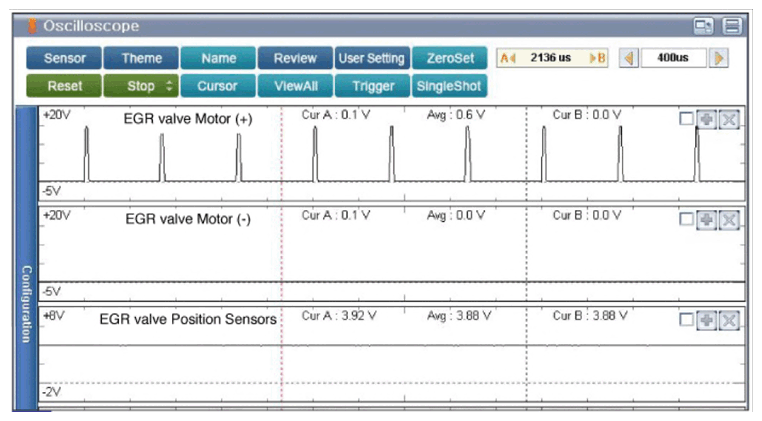

G13567446Courtesy of HYUNDAI MOTOR AMERICA

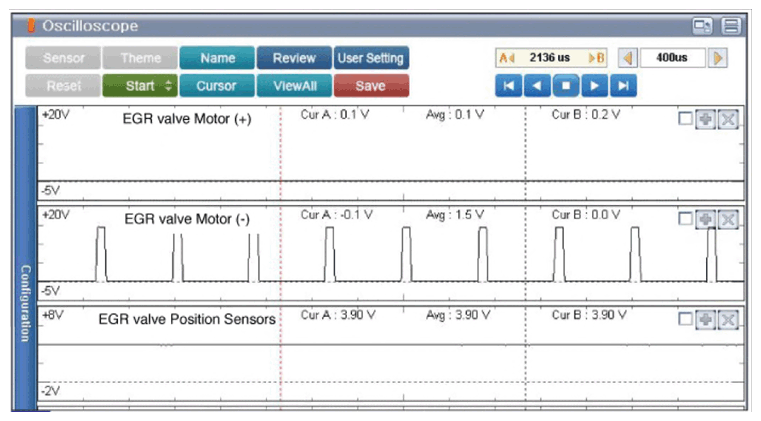

G13567447Courtesy of HYUNDAI MOTOR AMERICA
