Driver Power Window Switch

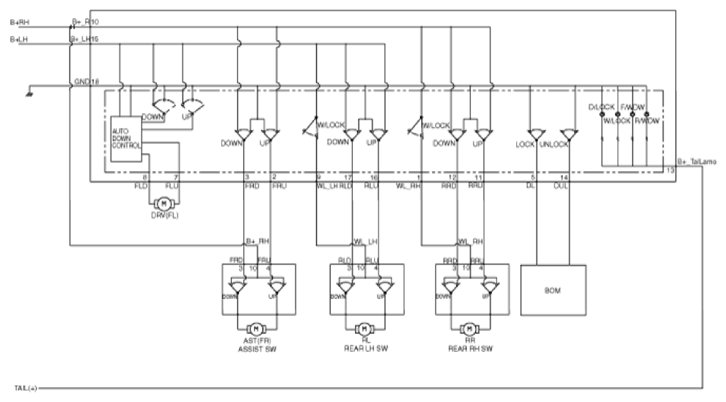

Driver Auto down power window

G13565009Courtesy of HYUNDAI MOTOR AMERICA

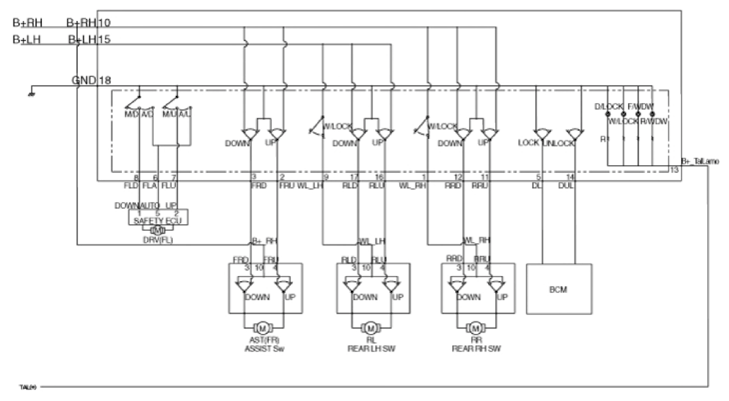

Driver Safety Power Window (Driver Auto)

G13565010Courtesy of HYUNDAI MOTOR AMERICA

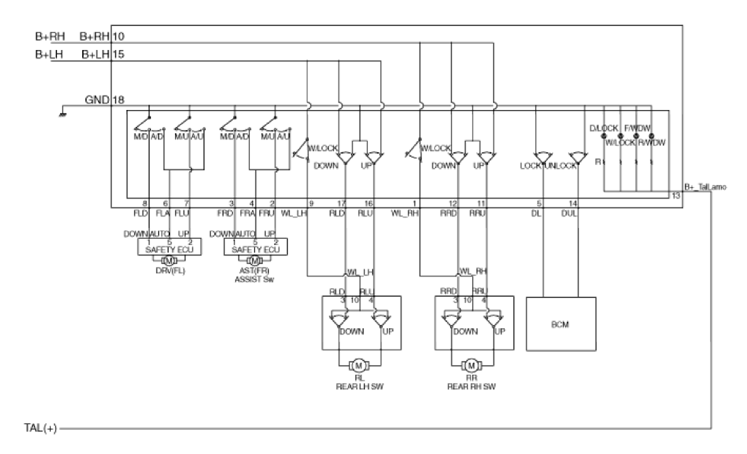

Driver Safety Power Window (Front Auto)

G13565011Courtesy of HYUNDAI MOTOR AMERICA

Safety Power Window (Assist Auto)

G13565012Courtesy of HYUNDAI MOTOR AMERICA

Manual Power Window

G13565013Courtesy of HYUNDAI MOTOR AMERICA
