FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB Key Status Info".

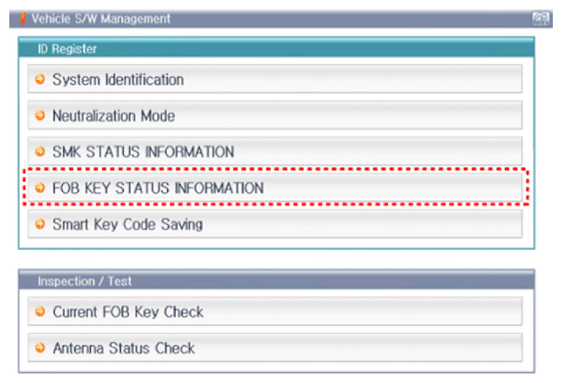

G13564731Courtesy of HYUNDAI MOTOR AMERICA

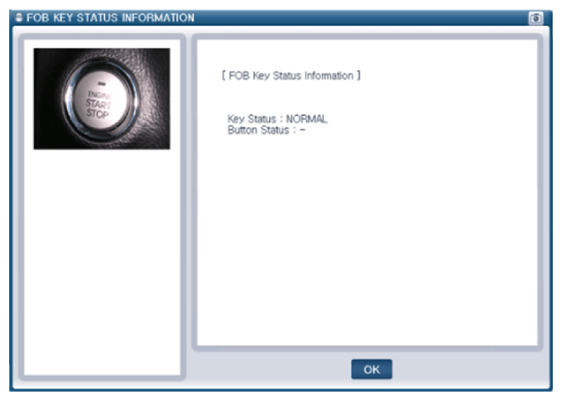

G13564732Courtesy of HYUNDAI MOTOR AMERICA
