HO2S (Bank 1/Sensor 2)

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the connector (A), and then remove the sensor (B).

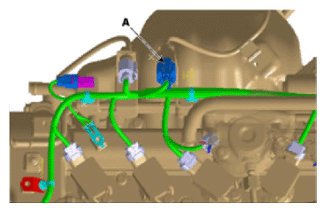

G13843255Courtesy of HYUNDAI MOTOR AMERICA

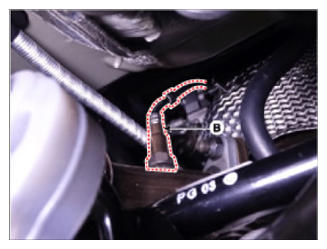

G13843256Courtesy of HYUNDAI MOTOR AMERICA
