Repair Procedures: Removal
- Turn OFF ignition switch and disconnect the negative (-) battery cable.

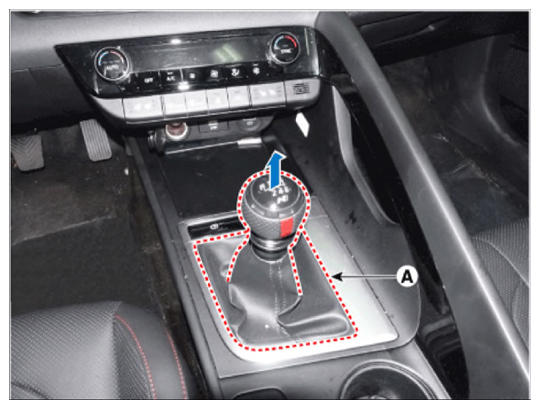

- Remove the shift lever knob & boots (A) pull both of it up.
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

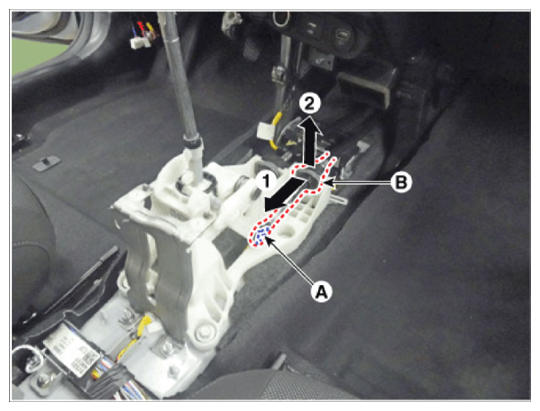

- Remove the snap pin (A) and then separate the select cable (B).

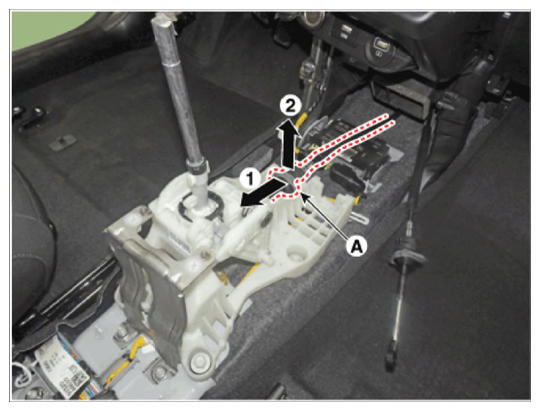

- Separate the cable socket (A) from the shift lever, after release the lock.

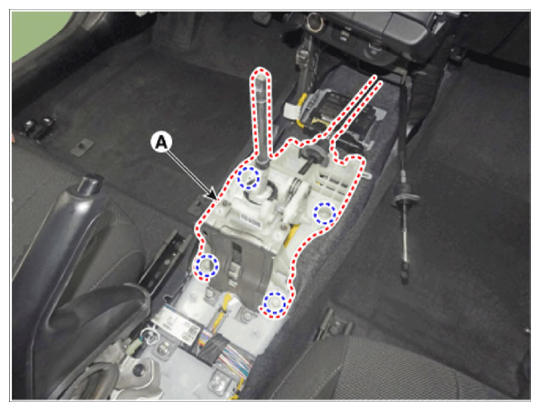

- Loosen the bolts and then disconnect the shift lever (A).
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

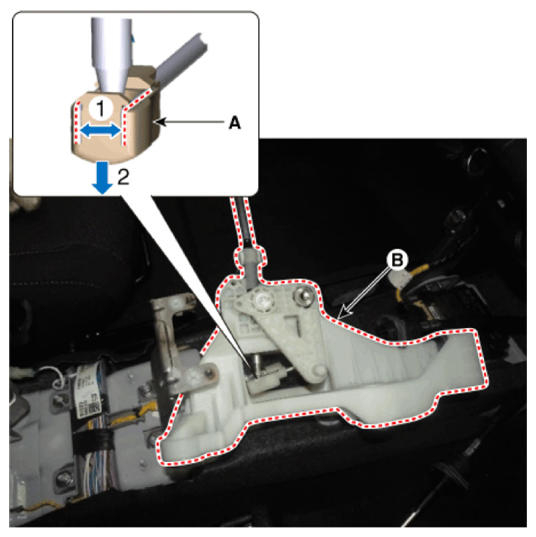

- Remove the shift cable (A) and shift lever (B) by spreading the clips on both sides of the cable end.
