Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

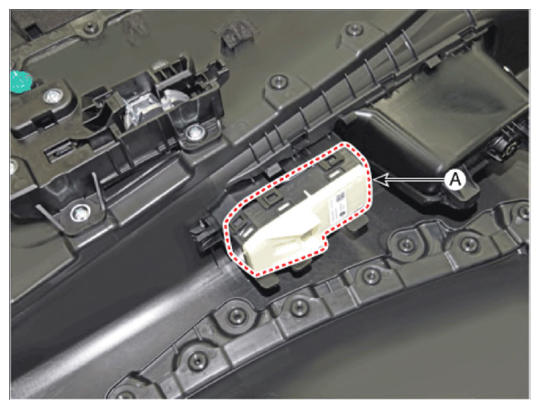

  3. Remove the power window switch assembly after disengaging the mounting clips.
    G14600321Courtesy of HYUNDAI MOTOR AMERICA
