Tailgate Lock Module Inspection

  1. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

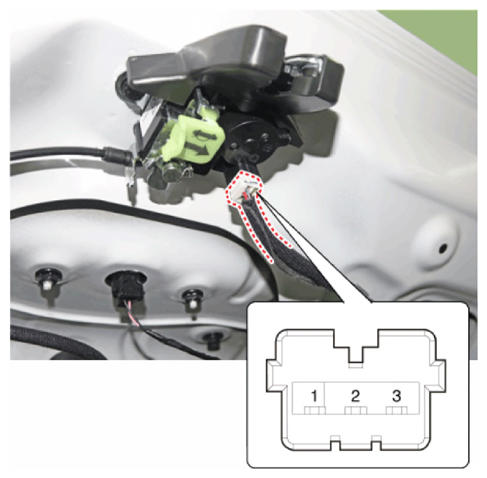

  2. Disconnect the connector from the actuator
    G14600263Courtesy of HYUNDAI MOTOR AMERICA

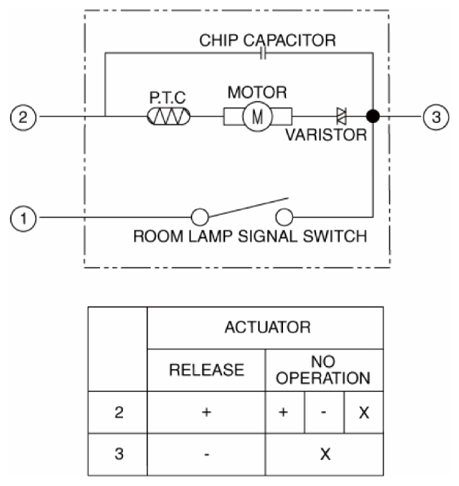

  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
    G14600264Courtesy of HYUNDAI MOTOR AMERICA
    G14600265Courtesy of HYUNDAI MOTOR AMERICA
    G14600266Courtesy of HYUNDAI MOTOR AMERICA
  4. Checking the trunk of the vehicle power option power refers to the trunk module.
