Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

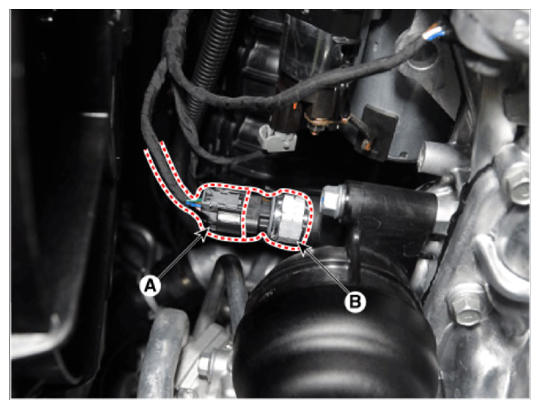

  4. Disconnect the connector (A), and then remove the sensor (B).

    Tightening Torque:

    14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)

    G14607610Courtesy of HYUNDAI MOTOR AMERICA
