Transaxle mounting bracket

  1. Disconnect the battery negative terminal.
  2. Remove the engine room under cover.

    (Refer to "ENGINE ROOM UNDER COVER ")

  3. Remove the air duct and air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  4. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Remove the engine control module (ECM).

    (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

  6. Remove the battery tray.

    (Refer to Engine Electrical System - "BATTERY TRAY ")

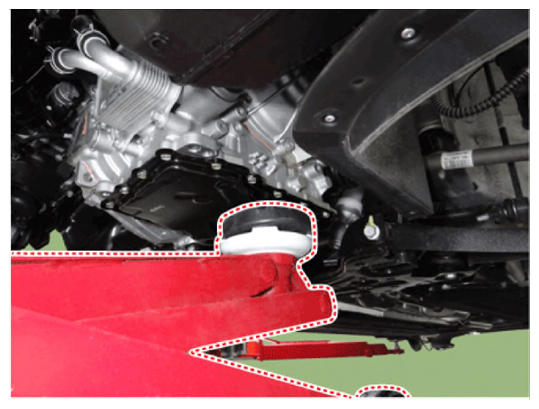

  7. Install the jack under the transaxle to support it.
    G14076242Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Insert the rubber block between jack and transaxle.

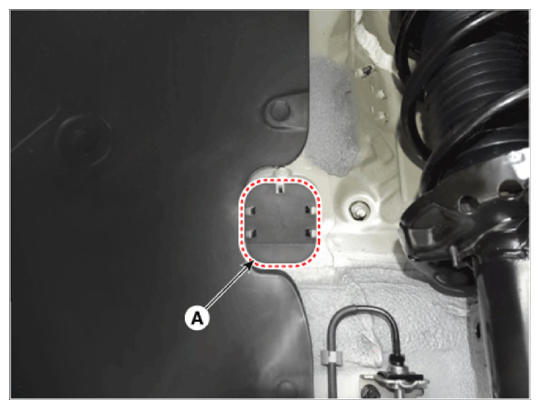

  8. Remove the service cover (A).
    G14076243Courtesy of HYUNDAI MOTOR AMERICA

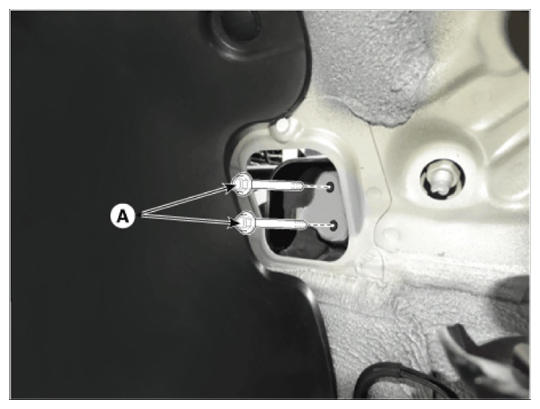

  9. Remove the transaxle support bracket mounting bolts (A).

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

    G14076244Courtesy of HYUNDAI MOTOR AMERICA

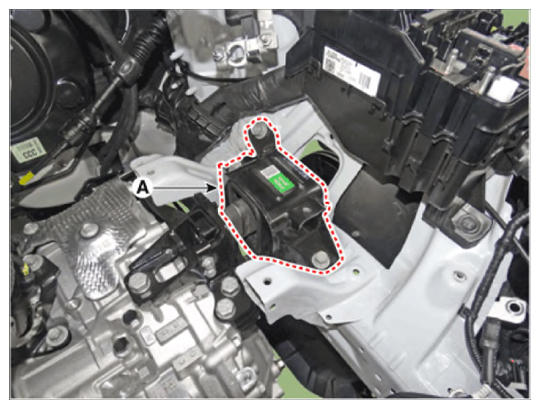

  10. Remove the transaxle mounting bracket (A).

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G14076245Courtesy of HYUNDAI MOTOR AMERICA
  11. Install in the reverse order of removal.
