Engine mounting bracket
- Remove the engine room under cover.
(Refer to "ENGINE ROOM UNDER COVER ")

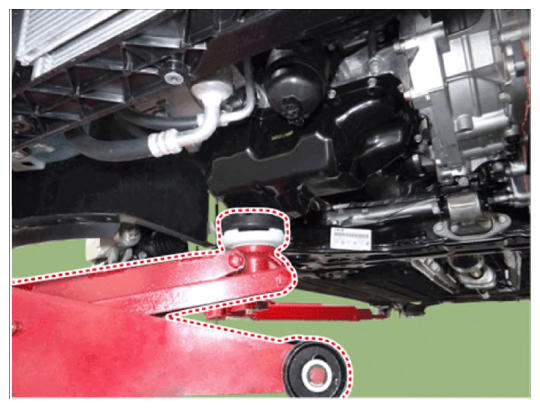

- Install the jack to the edge of oil panNOTE:
- Insert the rubber block between jack and oil pan.

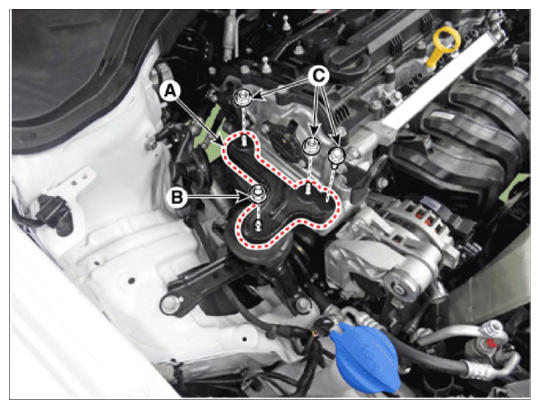

- Remove the engine mounting support bracket (A).
Tightening torque
Nut (B): 88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)
Bolt, Nuts (C): 58.8 - 73.6 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

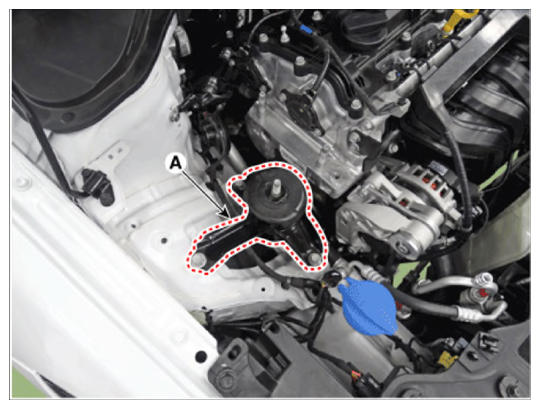

- Remove the engine mounting bracket (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
- Install in the reverse order of removal.
