Trunk Lock Module Inspection

  1. Remove the tailgate trim.

    (Refer to Body - "TRUNK LID TRIM ")

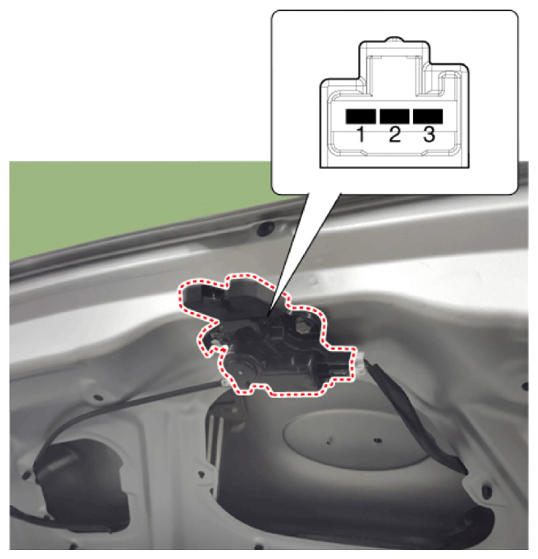

  2. Disconnect the connector from the actuator.
    G14078666Courtesy of HYUNDAI MOTOR AMERICA
  3. Check for continuity between the terminals in each switch position according to the table.
    G14078667Courtesy of HYUNDAI MOTOR AMERICA
  4. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
    G14078668Courtesy of HYUNDAI MOTOR AMERICA
