Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the electric shift button.

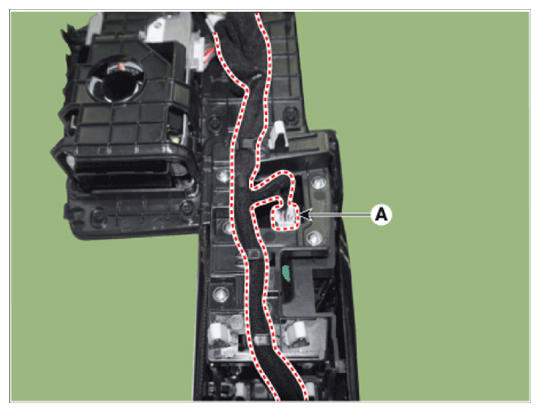

    1. Disconnect the connector (A) and then separate the wire.
      G14525573Courtesy of HYUNDAI MOTOR AMERICA

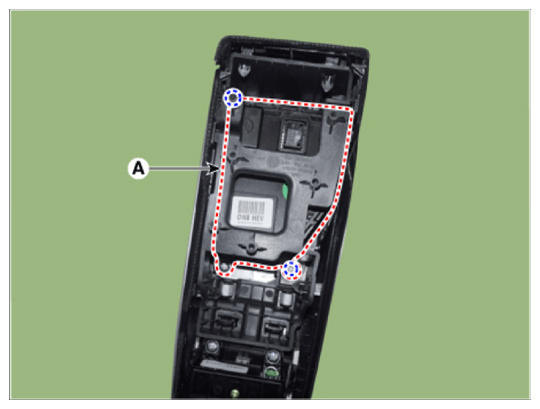

    2. Loosen the screw and then removing the shift button assembly (A).
      G14525574Courtesy of HYUNDAI MOTOR AMERICA

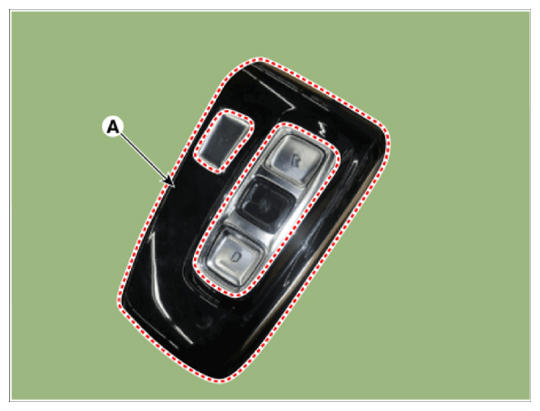

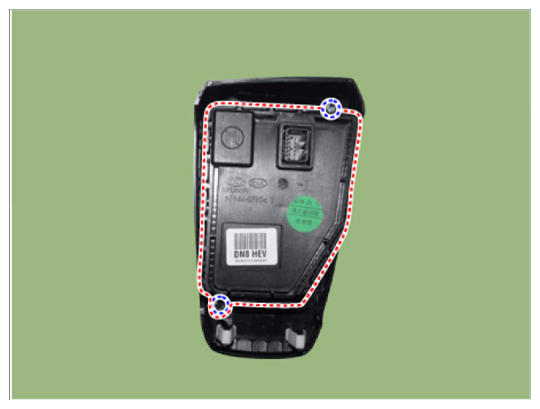

    3. Loosen the screw (B) and then removing the console upper cover (A).
      G14525575Courtesy of HYUNDAI MOTOR AMERICA
      G14525576Courtesy of HYUNDAI MOTOR AMERICA

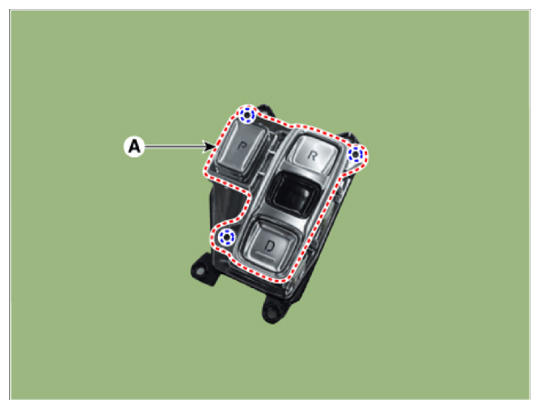

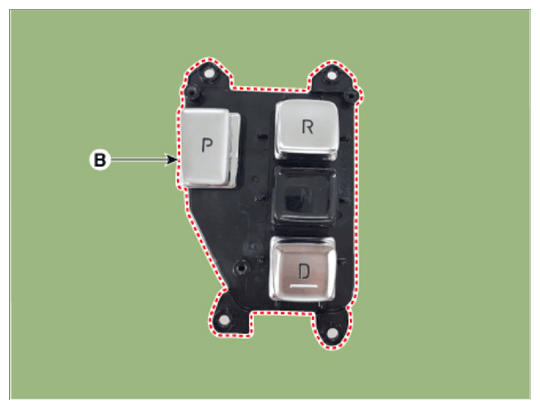

    4. Loosen the screw and then removing the upper cover (A) from shift button (B).
G14525577Courtesy of HYUNDAI MOTOR AMERICA
G14525578Courtesy of HYUNDAI MOTOR AMERICA
