Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the electric shift button.

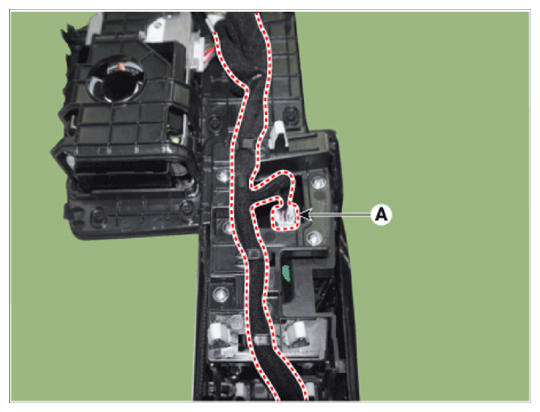

    1. Disconnect the connector (A) and then separate the wire.
      G14528954Courtesy of HYUNDAI MOTOR AMERICA

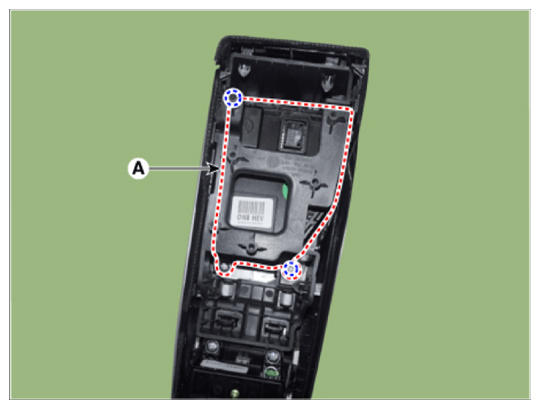

    2. Loosen the screw and then removing the shift button assembly (A).
      G14528955Courtesy of HYUNDAI MOTOR AMERICA

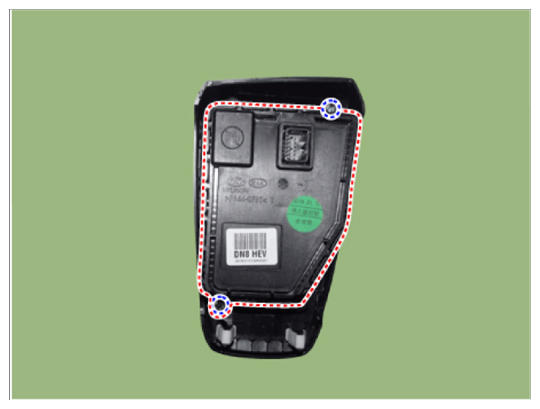

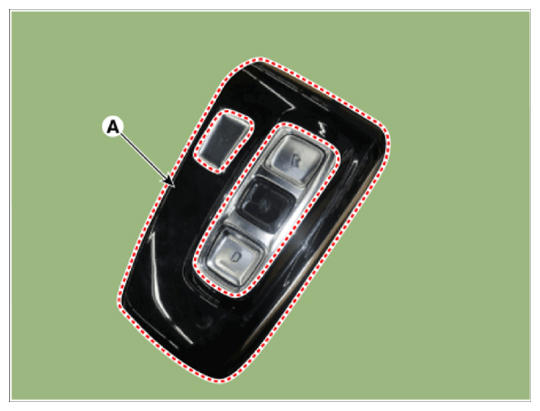

    3. Loosen the screw (B) and then removing the console upper cover (A).
      G14528956Courtesy of HYUNDAI MOTOR AMERICA
      G14528957Courtesy of HYUNDAI MOTOR AMERICA

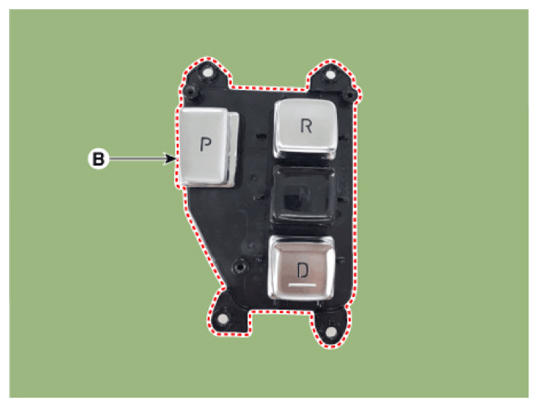

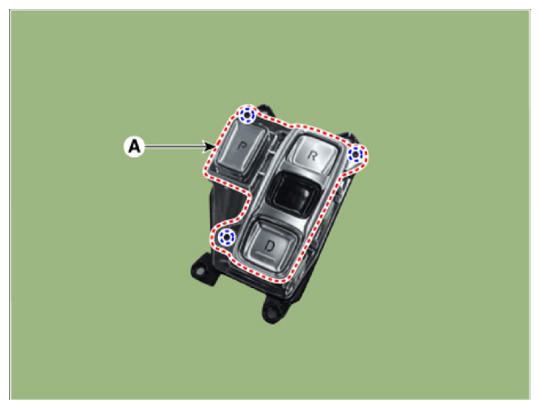

    4. Loosen the screw and then removing the upper cover (A) from shift button (B).
G14528958Courtesy of HYUNDAI MOTOR AMERICA
G14528959Courtesy of HYUNDAI MOTOR AMERICA
