Components And Components Location: Components
WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

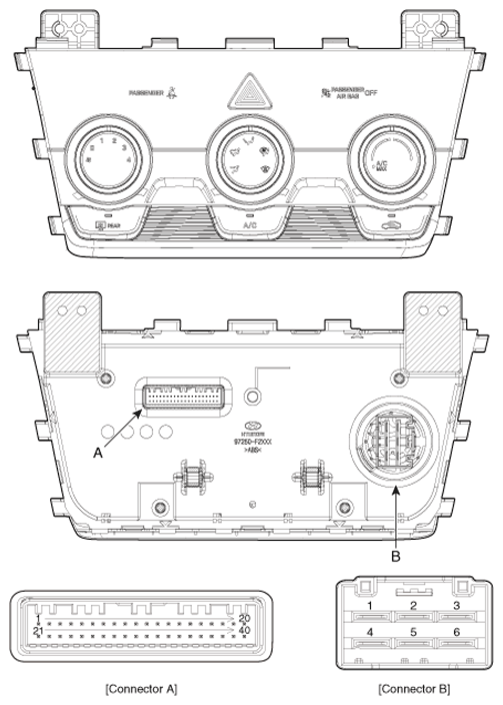

| Connector | Pin NO | Function | Connector | Pin NO | Function |
|---|---|---|---|---|---|
| A | 1 | IGN2 | A | 24 | ILL+ (TAIL) |
| 2 | PAB IGN1 | 25 | Sensor REF (+5V) | ||
| 3 | HTD (Rear defog indicator) | 26 | EVAP sensor (+) | ||
| 4 | Detent Out (-) | 27 | AMB sensor (+) | ||
| 5 | PTC Relay 2 | 28 | Mode control actuator (Feedback) | ||
| 6 | PTC Relay 3 | 29 | Temperature control actuator (Feedback) | ||
| 7 | PTC on signal | 30 | Intake actuator (Feedback) | ||
| 8 | PAB Off signal | 31 | Mode control actuator (Vent) | ||
| 9 | SBR | 32 | Mode control actuator (Def) | ||
| 10 | Rear SBR [LH] | 33 | Temperature control actuator (Cool) | ||
| 11 | Rear SBR [Center] | 34 | Temperature control actuator (Warm) | ||
| 12 | Rear SBR [RH] | 35 | Intake actuator (Fresh) | ||
| 13 | ECV+ | 36 | Intake actuator (Recirculation) | ||
| 14 | ECV- (Ground) | 37 | C_CAN High | ||
| 15 | Max blower on signal | 38 | C_CAN Low | ||
| 16 | Rear defogging switch (On) | 39 | Blower common signal | ||
| 17 | Hazard signal | 40 | Ground | ||
| 18 | ILL- (RHEO) | B | 1 | Low | |
| 19 | Sensor ground | 2 | Common | ||
| 20 | Ground | 3 | Ground | ||
| 21 | Battery (+) | 4 | Middle Low | ||
| 22 | ISG DC | 5 | Middle High | ||
| 23 | ISG B+ | 6 | High |
