Components And Components Location: Components

WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

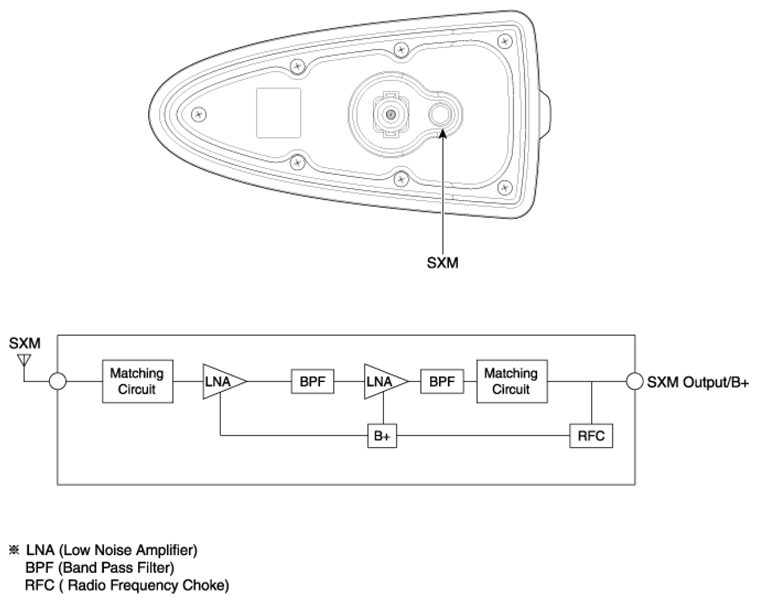

[SXM]

G12974996Courtesy of HYUNDAI MOTOR AMERICA

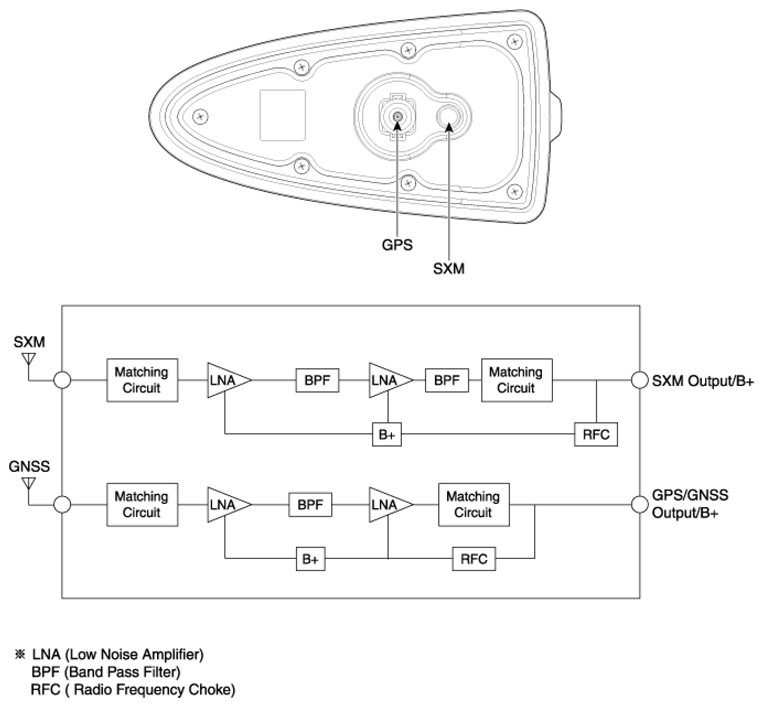

[SXM + GPS]

G12974997Courtesy of HYUNDAI MOTOR AMERICA

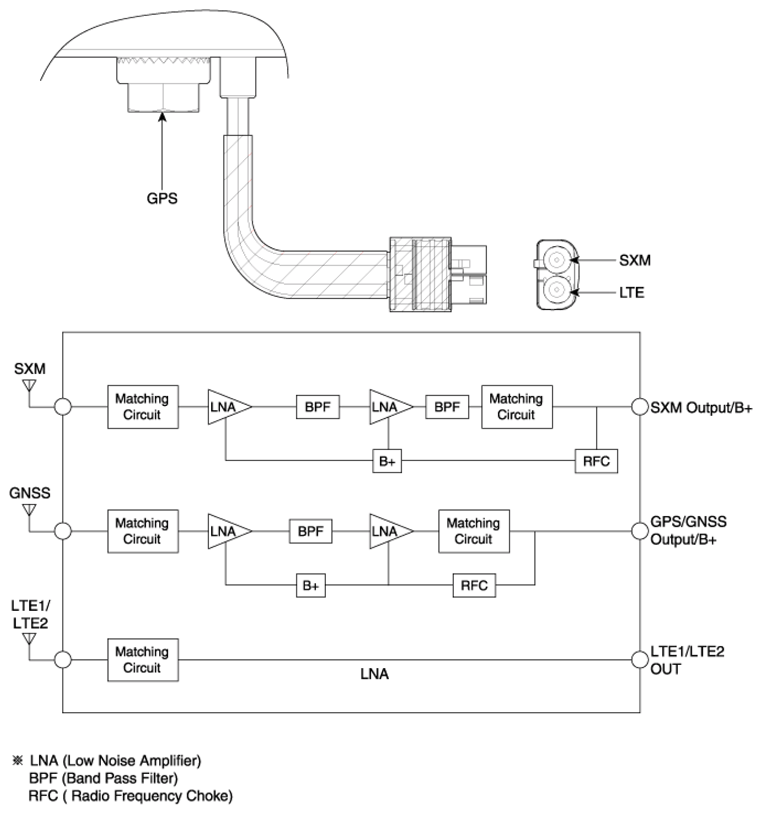

[SXM + GPS + LTE]

G12974998Courtesy of HYUNDAI MOTOR AMERICA
