Signal Waveform And Data

Courtesy of HYUNDAI MOTOR AMERICA

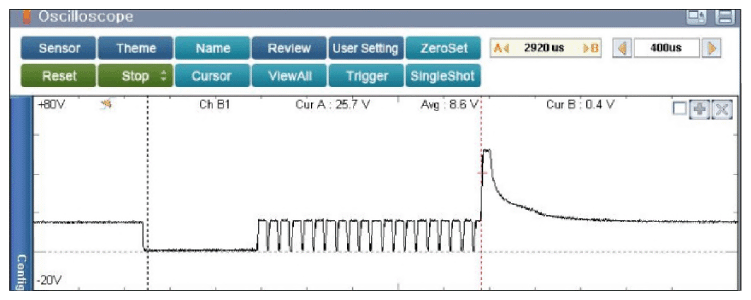

Fig.1) The waveform of Injector review at idle (engine warmed up state). Injector peak voltage: approx. 54V.

A~B sector (fuel injection): approx. 2920us (2.92 ms)

Courtesy of HYUNDAI MOTOR AMERICA

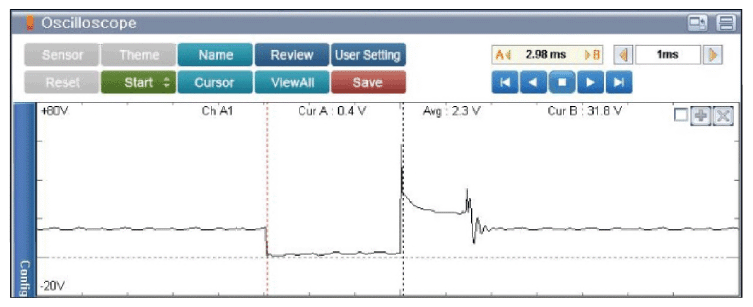

Fig.2) The waveform of ignition coil review at idle (engine warmed up state). Injector peak voltage: approx. 54V.

A~B sector: 2.98 ms
