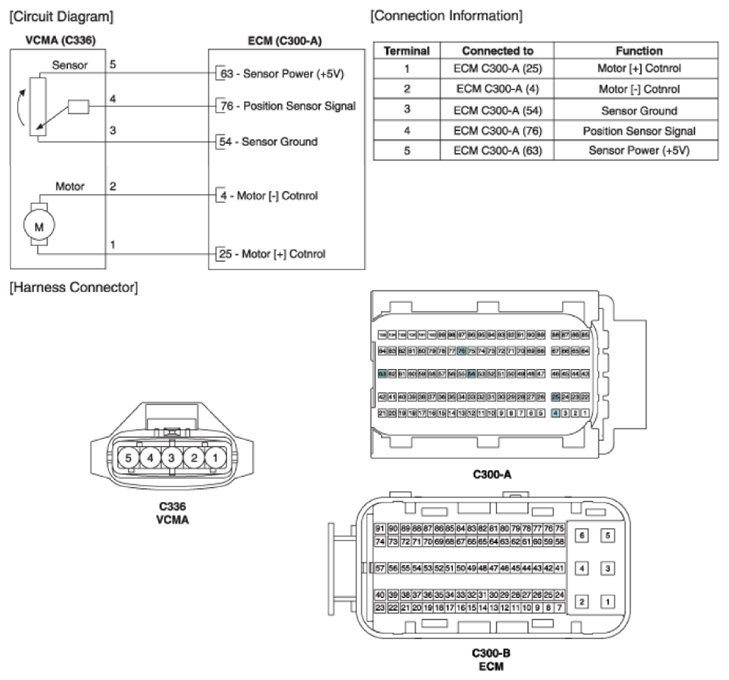

Home >> Hyundai >> 2020 >> Elantra Value Edition >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Variable Charge Motion Actuator (VCMA) >> Schematic Diagrams >> Circuit diagram
